DTC P0711: Transmission Fluid Temperature (TFT) Sensor Malfunction (Stuck): Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

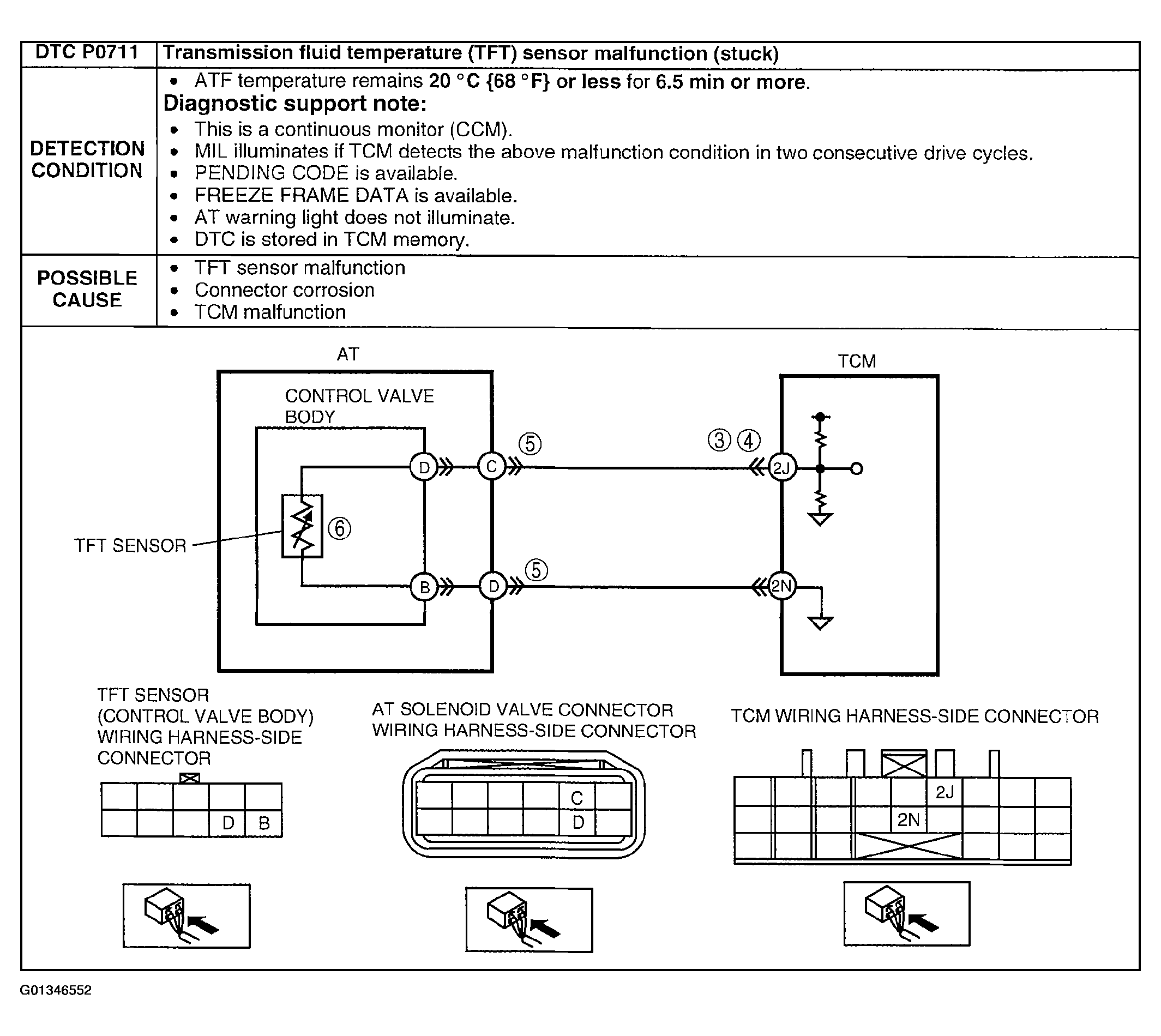

Fig 1: Possible Cause - DTC P0711: Transmission Fluid Temperature (TFT) Sensor Malfunction (Stuck)
G01346552Courtesy of MAZDA MOTORS CORP.
