Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

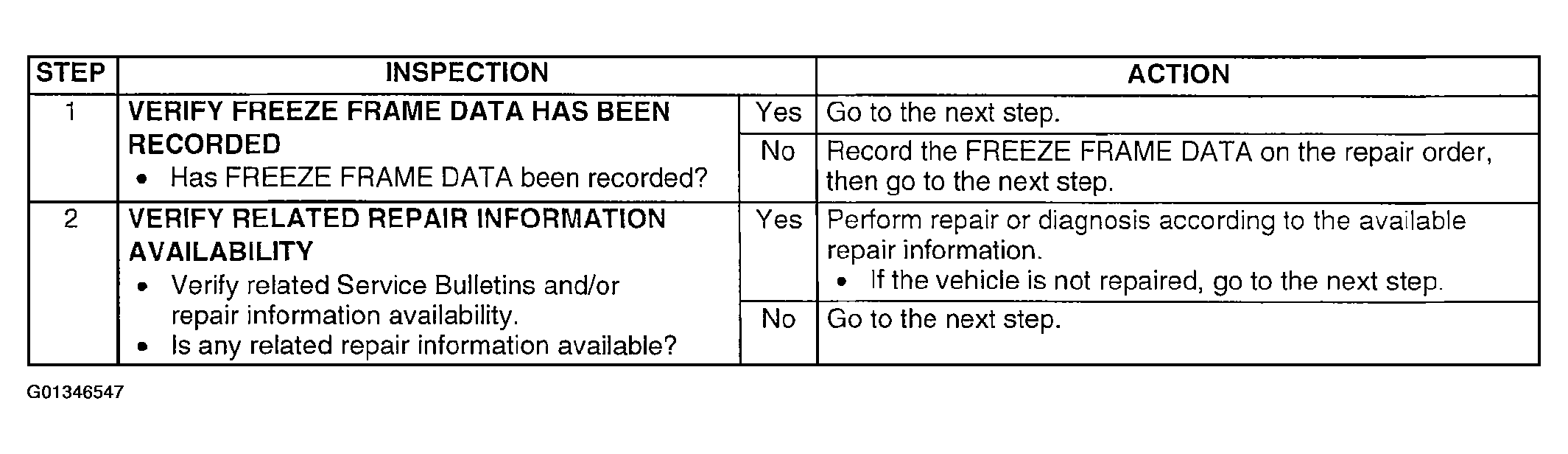

Fig 1: Diagnostic Procedure - DTC P0707: "M" Range Switch, Up Switch Or Down Switch Circuit Malfunction (Open Circuit/Short To Ground) - (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

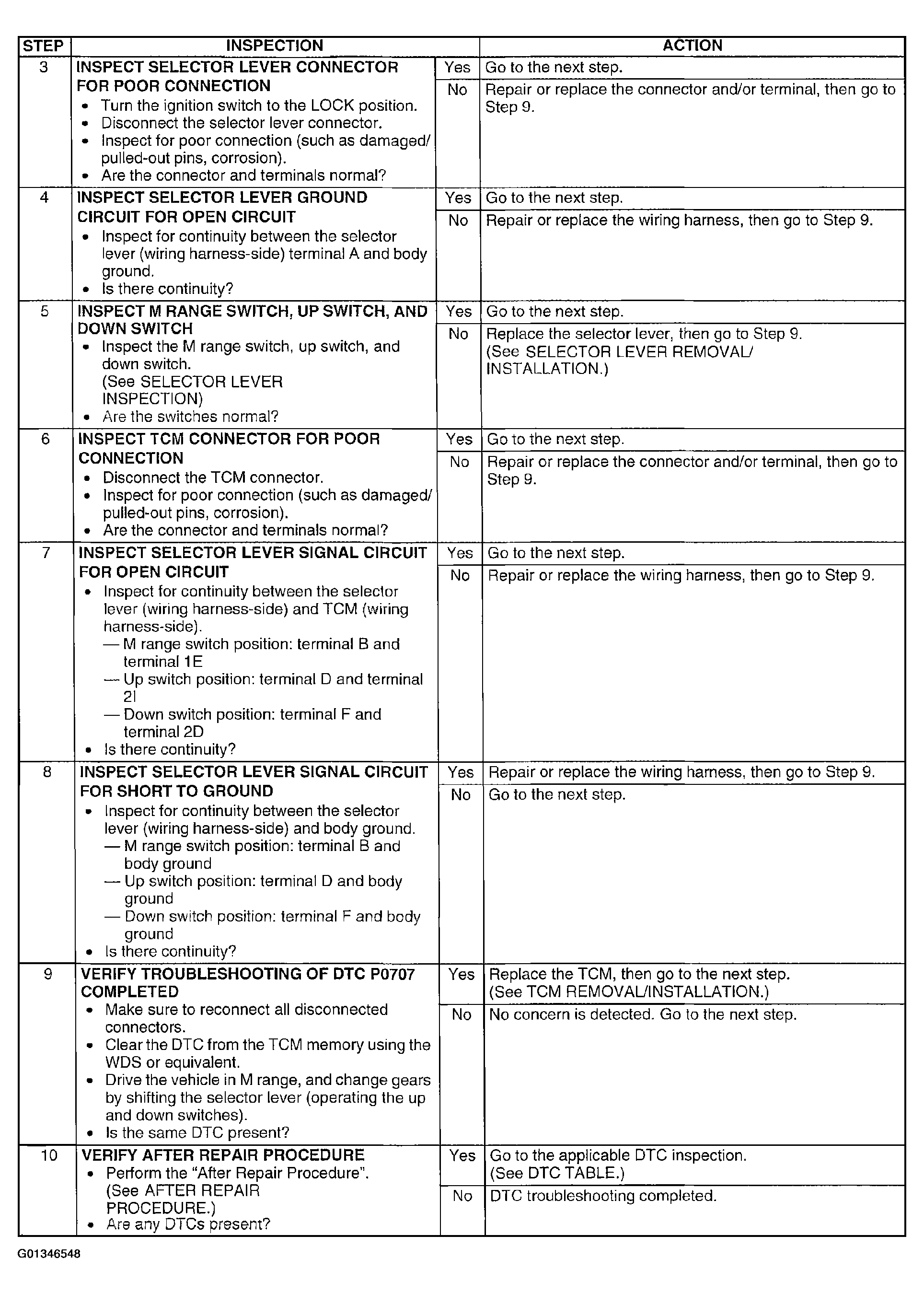

Fig 2: Diagnostic Procedure - DTC P0707: "M" Range Switch, Up Switch Or Down Switch Circuit Malfunction (Open Circuit/Short To Ground) - (Steps 3-10)

Courtesy of MAZDA MOTORS CORP.
