DTC P0706: Transmission Range (Tr) Switch Circuit Malfunction (Open Circuit/Short To Ground): Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

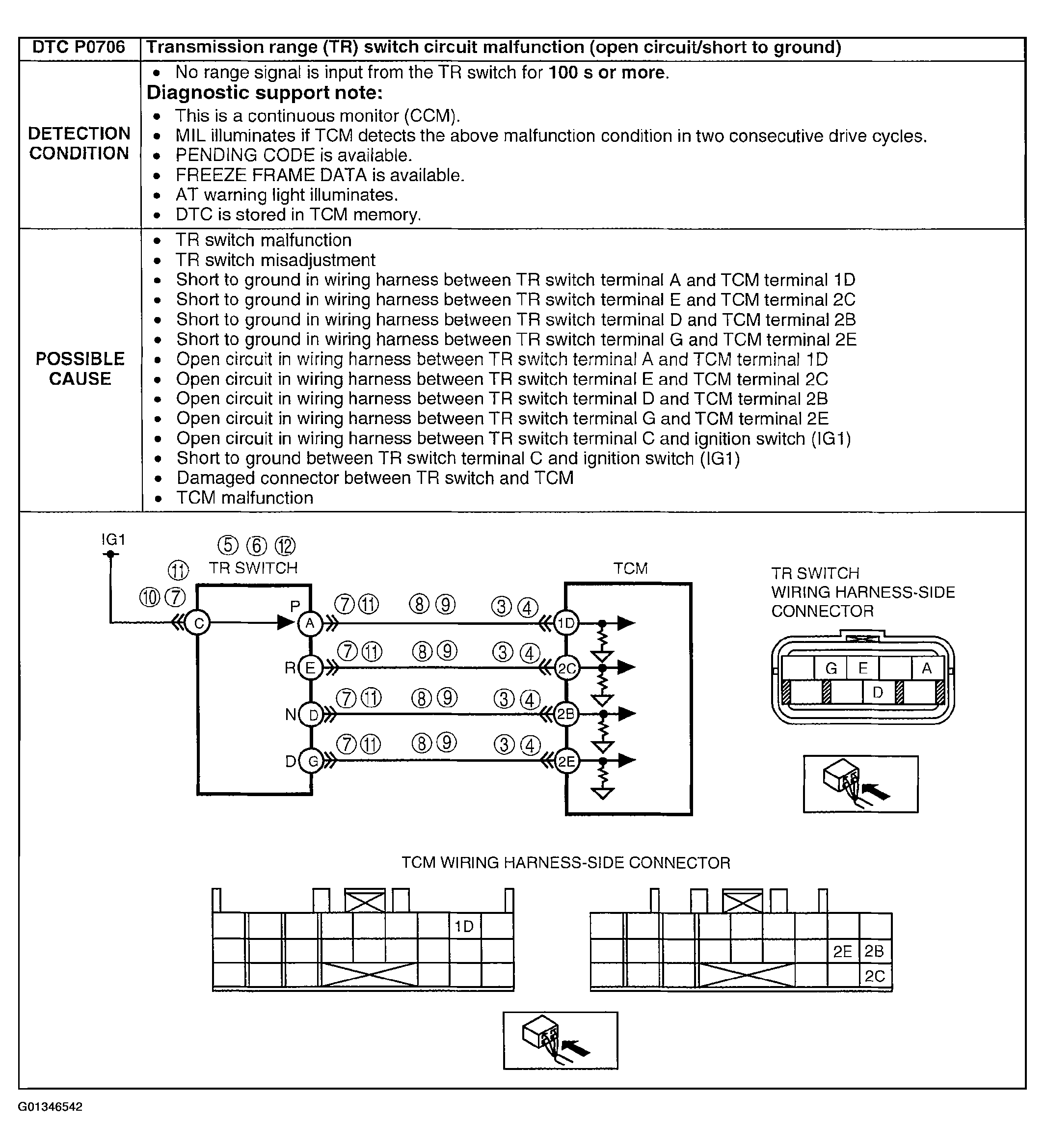

Fig 1: Possible Cause - DTC P0706: Transmission Range (TR) Switch Circuit Malfunction (Open Circuit/Short To Ground)

Courtesy of MAZDA MOTORS CORP.
