Valve Clearance Inspection: 626

WARNING: This page is about a different car, the 2001 Mazda Millenia and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure engine is cold. Remove intake manifold. See INTAKE MANIFOLD  under REMOVAL & INSTALLATION. Remove cylinder head cover.

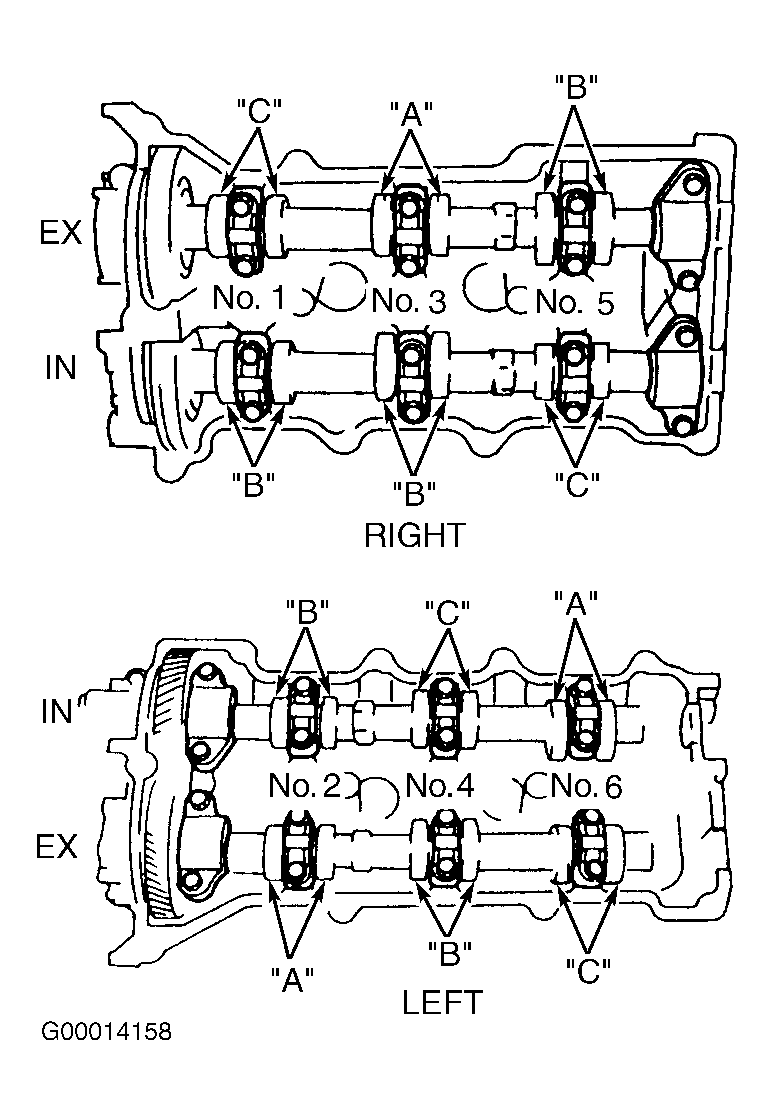

  2. Rotate crankshaft until No. 1 piston is at TDC of compression stroke. Measure clearance on cylinders designated "A". See Figure.
  3. Rotate crankshaft 240 degrees so No. 3 piston is at TDC of compression stroke. Measure clearance on cylinders designated "B". See Figure.
  4. Rotate crankshaft 240 degrees so No. 5 piston is at TDC of compression stroke. Measure clearance on cylinders designated "C". See Figure.
  5. If valve clearance is not within specification, replace tappet adjustment shims. See VALVE CLEARANCE ADJUSTMENT .
