Starter Interlock Switch Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If the rod is pushed in, it may not operate properly. Be careful not to push the rod in when installing the starter interlock switch.

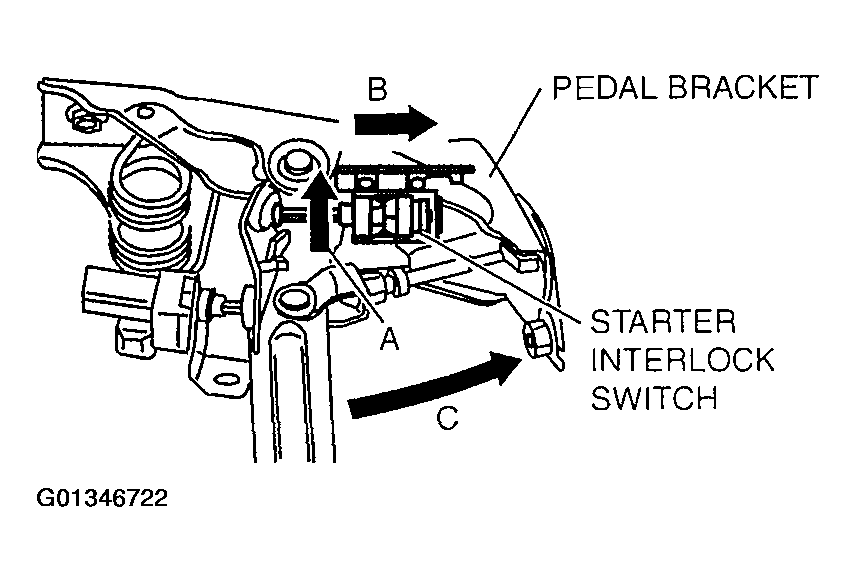

- Insert a new starter interlock switch into the pedal bracket hole in direction A.
- While pushing the starter interlock switch in direction A, slide it in direction B until it locks securely.
- Move the clutch in a fully open stroke in direction C and securely fit the terminal of the starter interlock switch.
