Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated. See Fig 1 .
Install in the reverse order of removal.
Inspect and adjust the clutch pedal.
See CLUTCH PEDAL ADJUSTMENT .

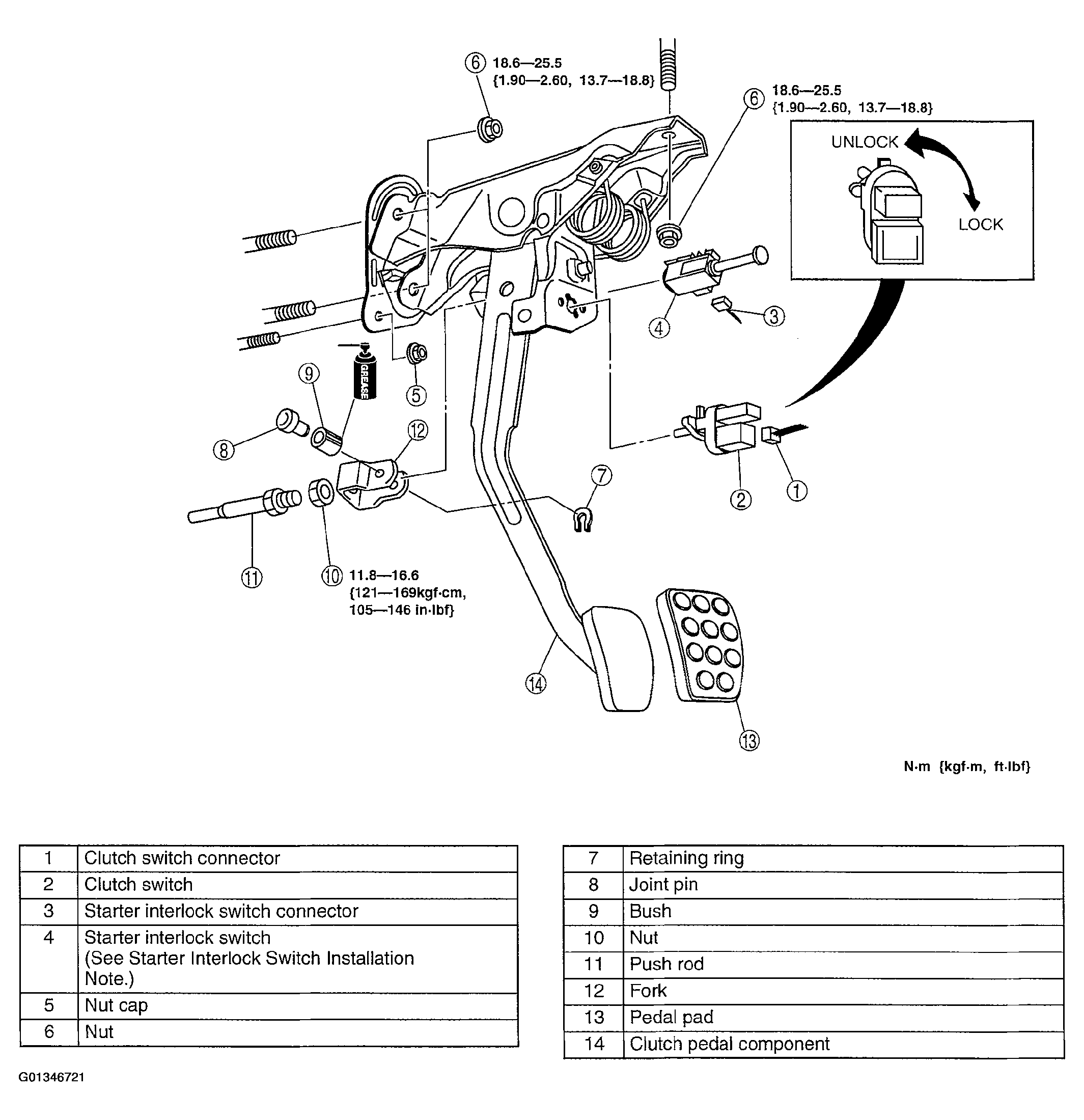

Fig 1: Removing/Installing Clutch Pedal
Courtesy of MAZDA MOTORS CORP.
