Clutch Pedal Stroke Inspection/Adjustment
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

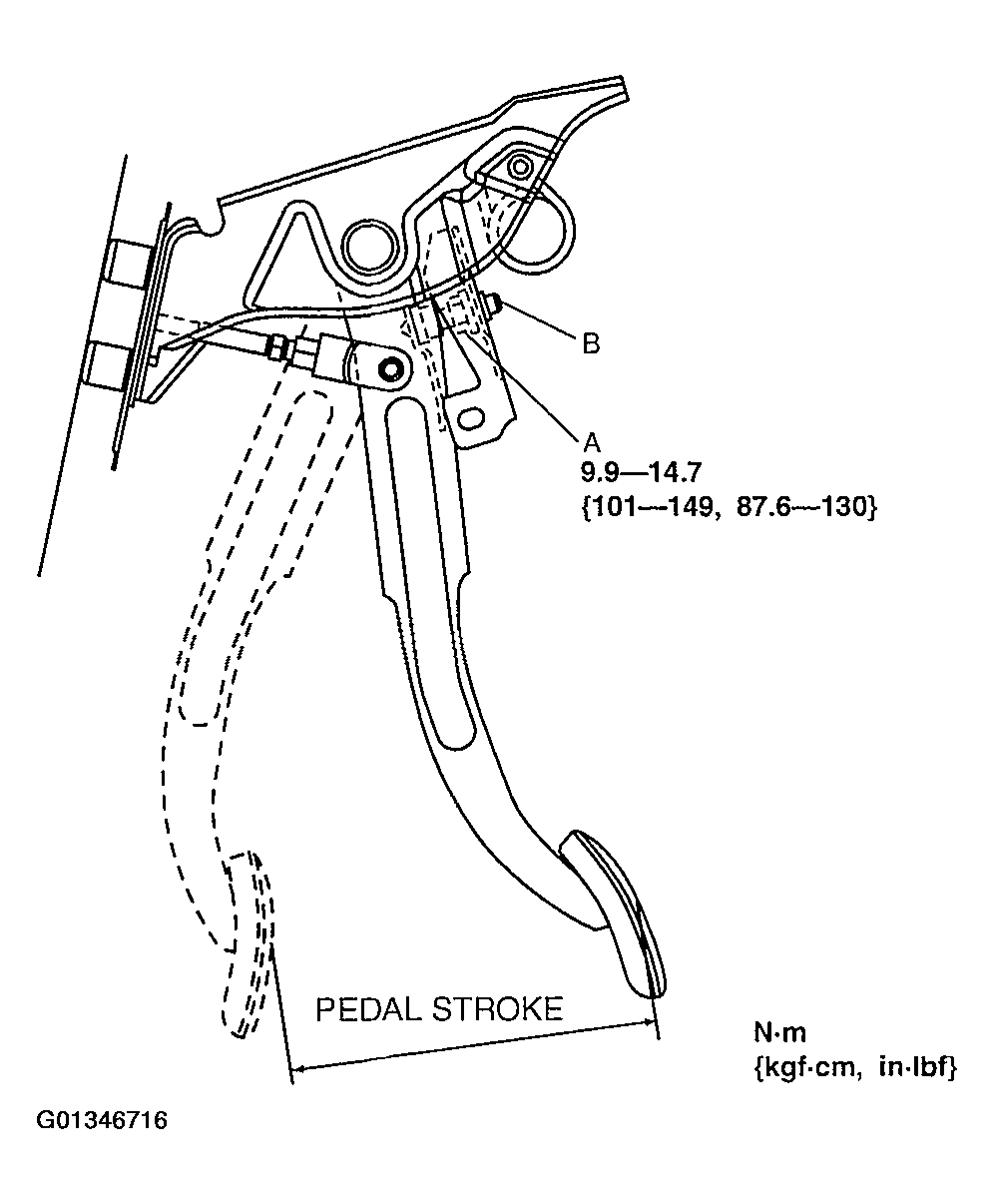

- Measure the clutch pedal stroke.
- If there is any malfunction, loosen locknut A and adjust the pedal stroke with adjusting bolt B. Tighten locknut A after adjustment.
Standard pedal stroke
130 mm {5.12 in}
Courtesy of MAZDA MOTORS CORP.
