Clutch Pedal Play Inspection/Adjustment
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Lightly depress the clutch pedal by hand until clutch resistance is felt and then measure the pedal play.
Standard
Clutch pedal play
5-15 mm {0.20-0.59 in}
Clutch pedal push rod play
At push rod setting line:
0.1-0.5 mm {0.004-0.020 in}
(Reference value)
At pedal pad:
0.5-2.9 mm {0.020-0.110 in}

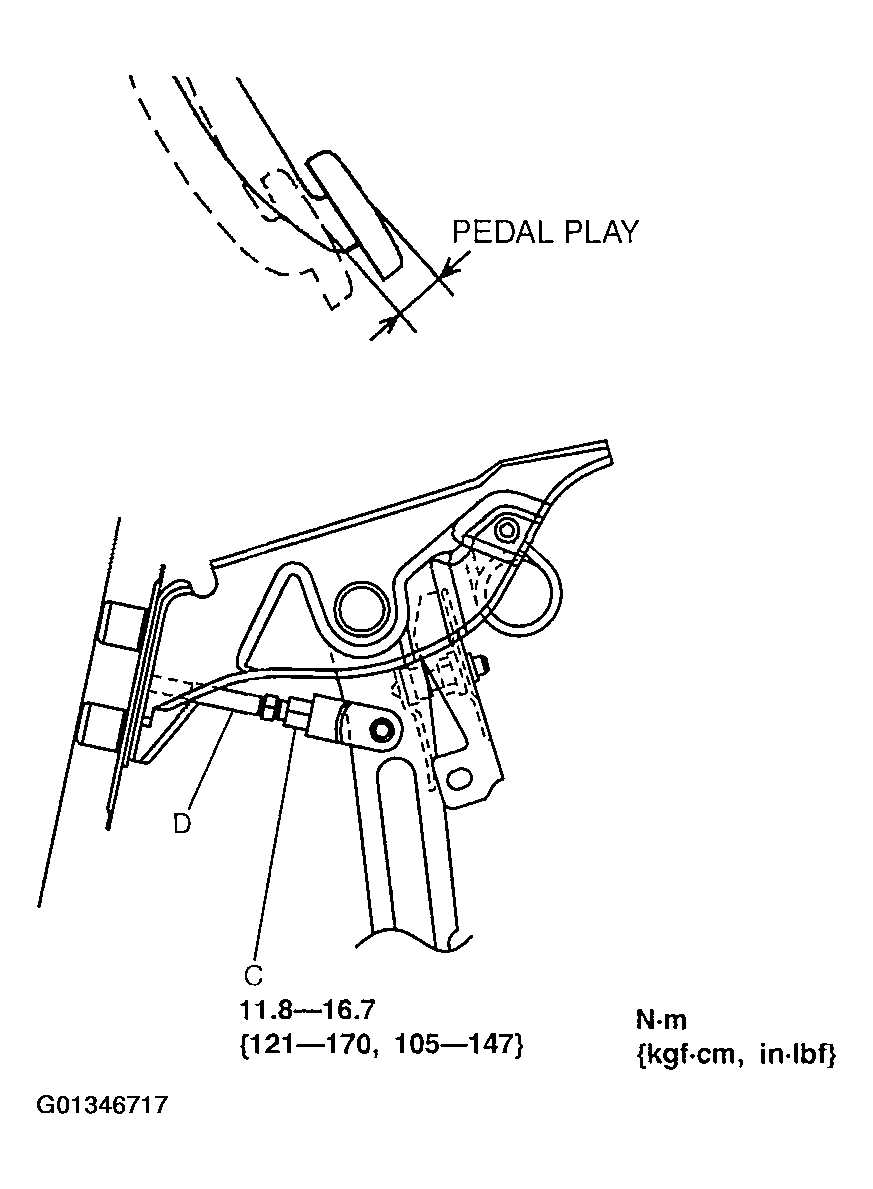

- If it is not within the specification, loosen locknut C and turn push rod D to adjust the pedal play.
- Remeasure the pedal play and, if it is within the specification, tighten locknut C.
