Off-Vehicle Inspection
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the oil pressure switch. (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)

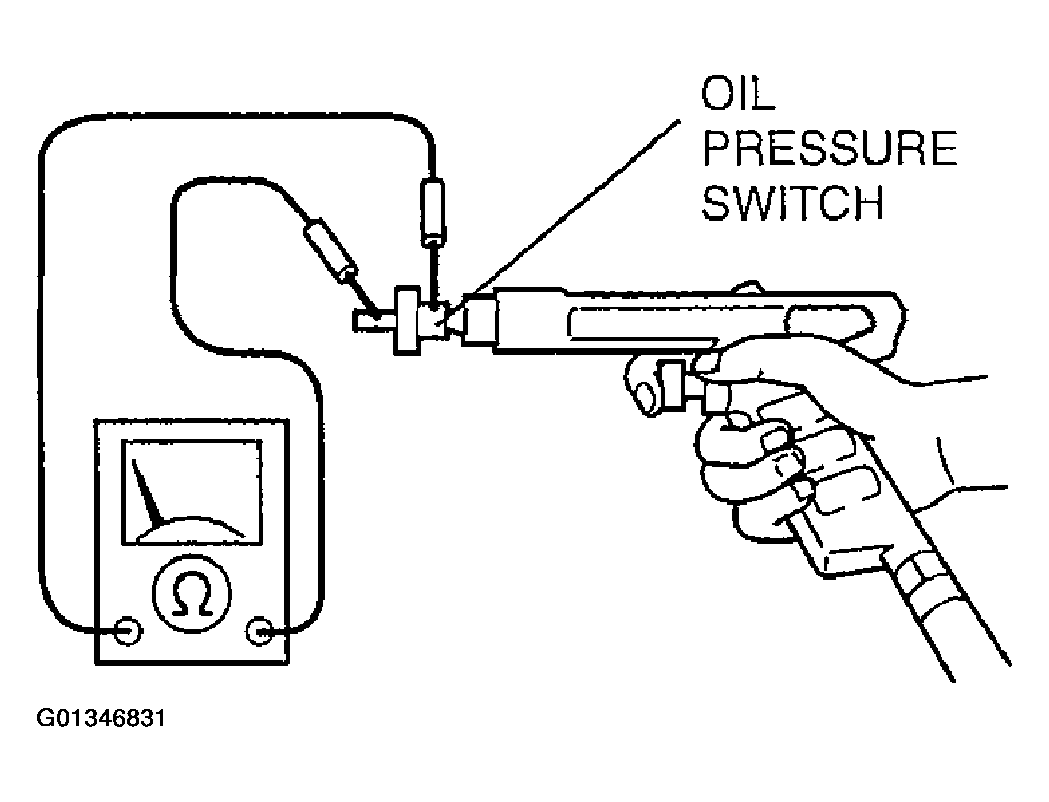

- Apply 393-490 kPa {4.0-5.0 kgf/cm 2
, 57-71 psi}
of air pressure to the oil pressure switch, and inspect for continuity between the oil pressure switch connector and the oil pressure switch screw.
- If there is no continuity, replace the oil pressure switch. (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
- Apply air pressure to the oil pressure switches, and verify for no continuity between the oil pressure switch connector and the oil pressure switch screw.
- If there is continuity, replace the oil pressure switch. (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
- Install the oil pressure switch. (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
