Drive Plate Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the SST  against the engine.
  2. Remove the bolts and the drive plate.

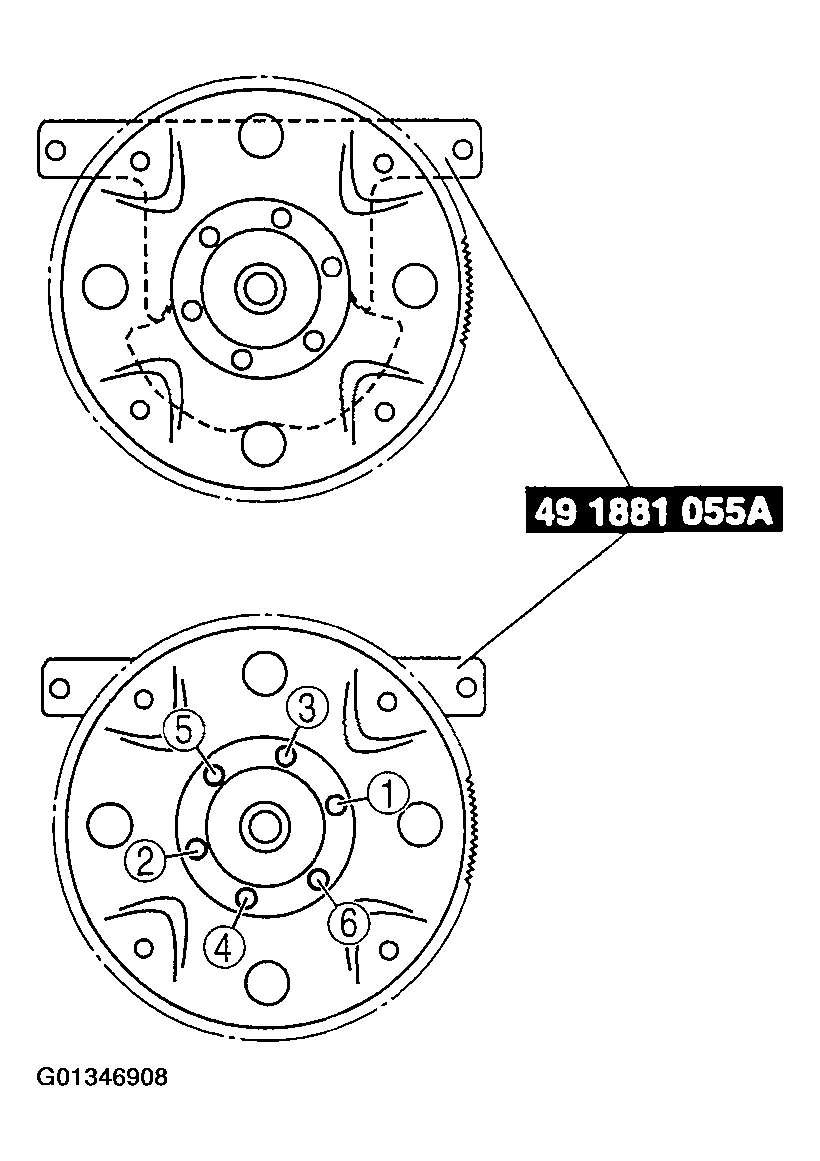

    Fig 1: Setting Special Tool Against Engine & Removing Bolts & Drive Plate
    G01346908Courtesy of MAZDA MOTORS CORP.
