Drive Plate Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

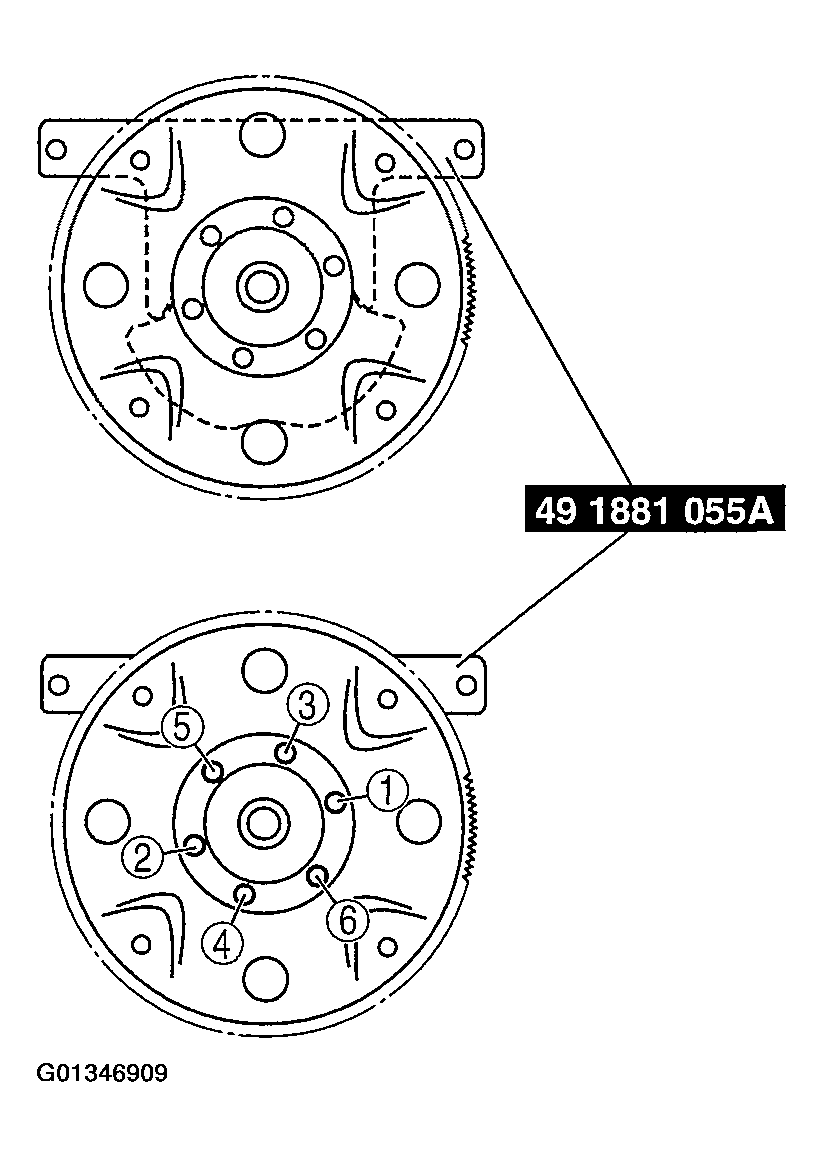

- Set the SST against the engine.
- Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
41.2-61.8 N.m {4.2-6.3 kgf.m, 30.4-45.5 ft.lb}
- Install the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .)
