Torque Converter Installation Nuts Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Lock the drive plate using a flat head screwdriver as shown in the figure. See Fig 1.
Remove the torque converter installation nuts using a SST.

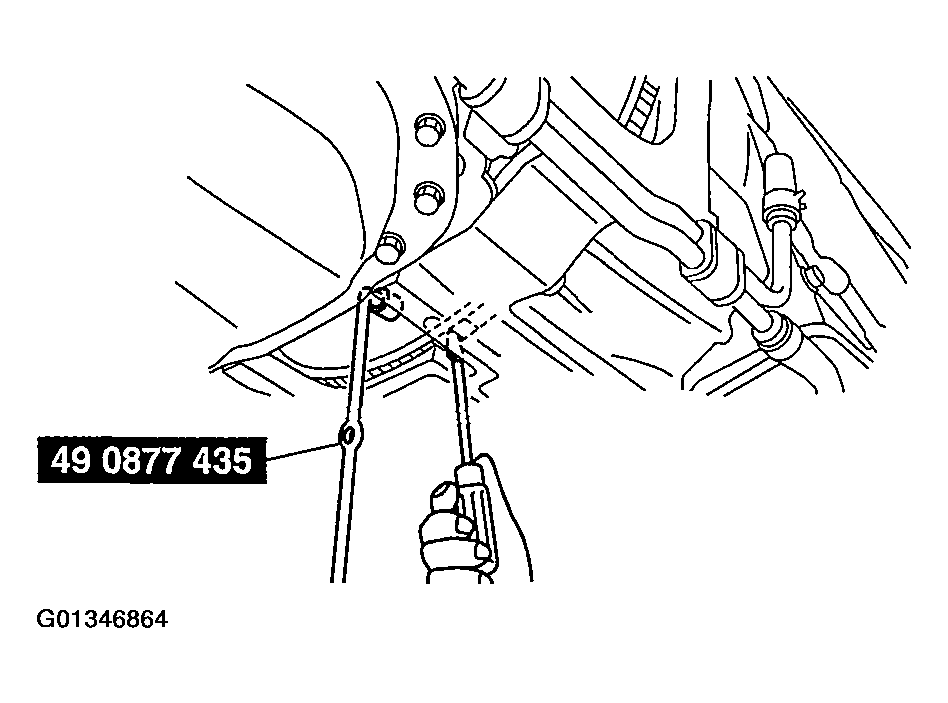

Fig 1: Locking Drive Plate
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After separate the transmission from engine, remove the driven plate.
Loosen the driven plate installation bolts.

Fig 2: Loosening Driven Plate Installation Bolts
Courtesy of MAZDA MOTORS CORP.
