Section 217 (Technical Data [Suspension)): Suspension

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Standard Suspension

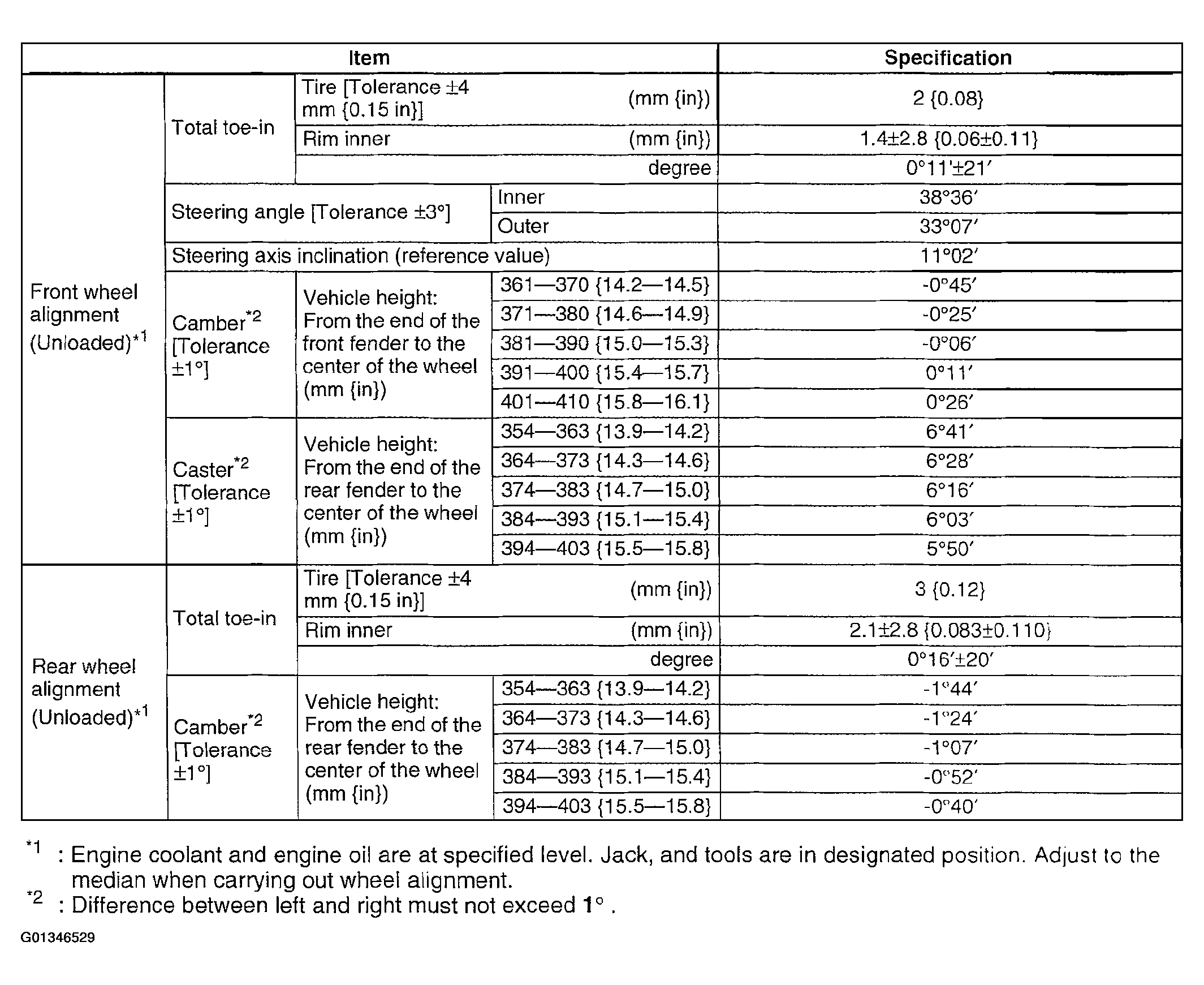

Fig 1: Technical Data Table Of Standard Suspension

Courtesy of MAZDA MOTORS CORP.

Sport Suspension

Fig 2: Technical Data Table Of Sport Suspension

Courtesy of MAZDA MOTORS CORP.

Wheel And Tires

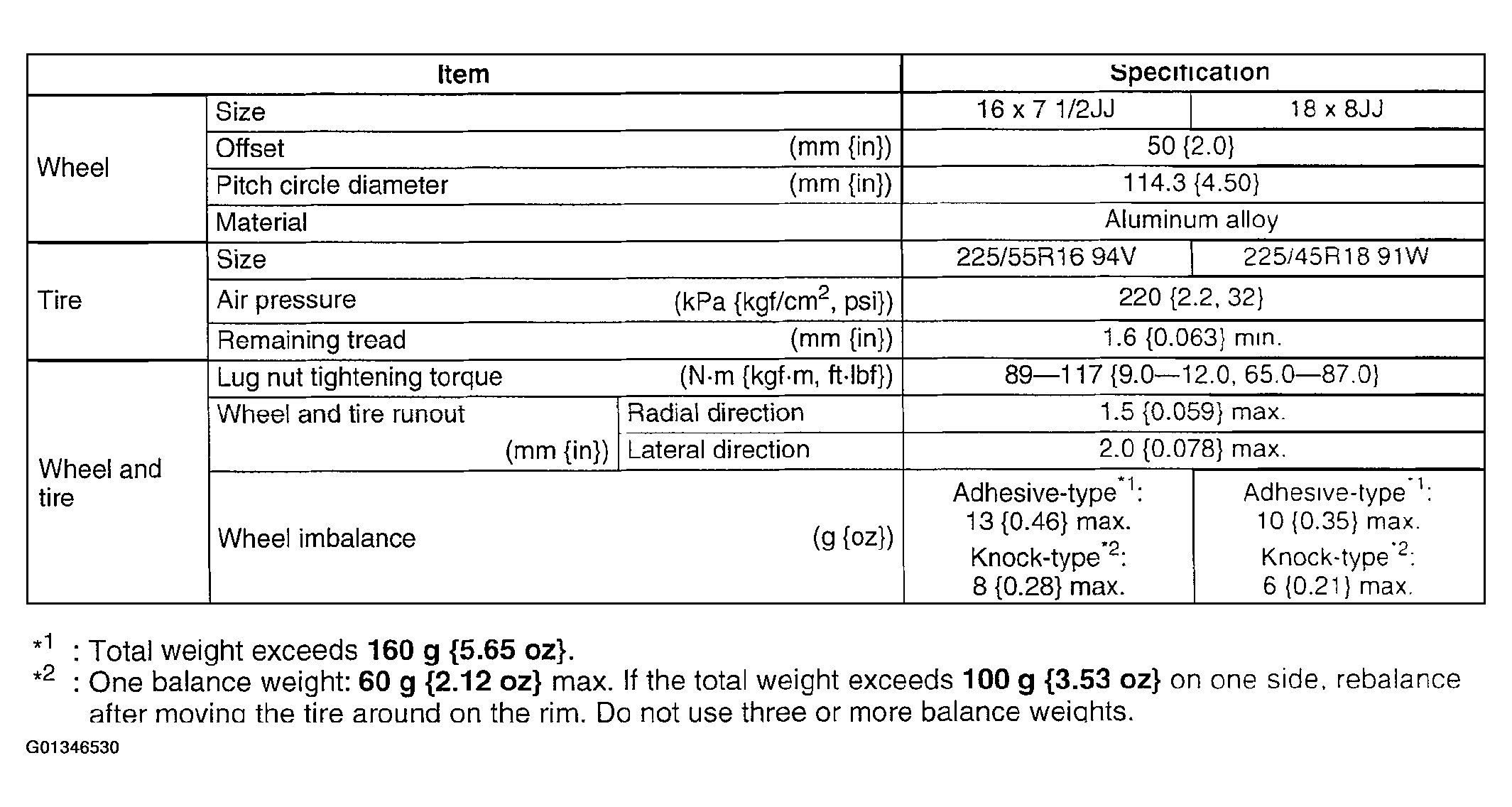

Fig 3: Technical Data Table Of Wheel & Tires

Courtesy of MAZDA MOTORS CORP.

Ball Joint Rotational Torque

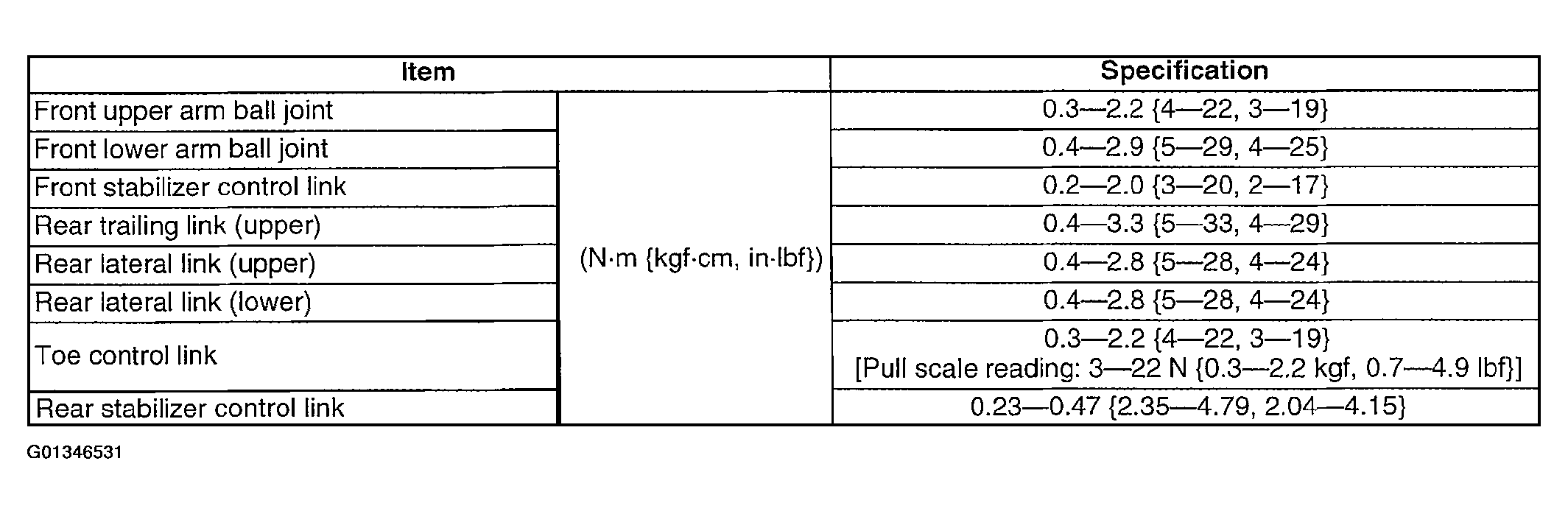

Fig 4: Technical Data Table Of Ball Joint Rotational Torque

Courtesy of MAZDA MOTORS CORP.
