DTC P0139: Rear Ho2S Circuit Slow Response

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

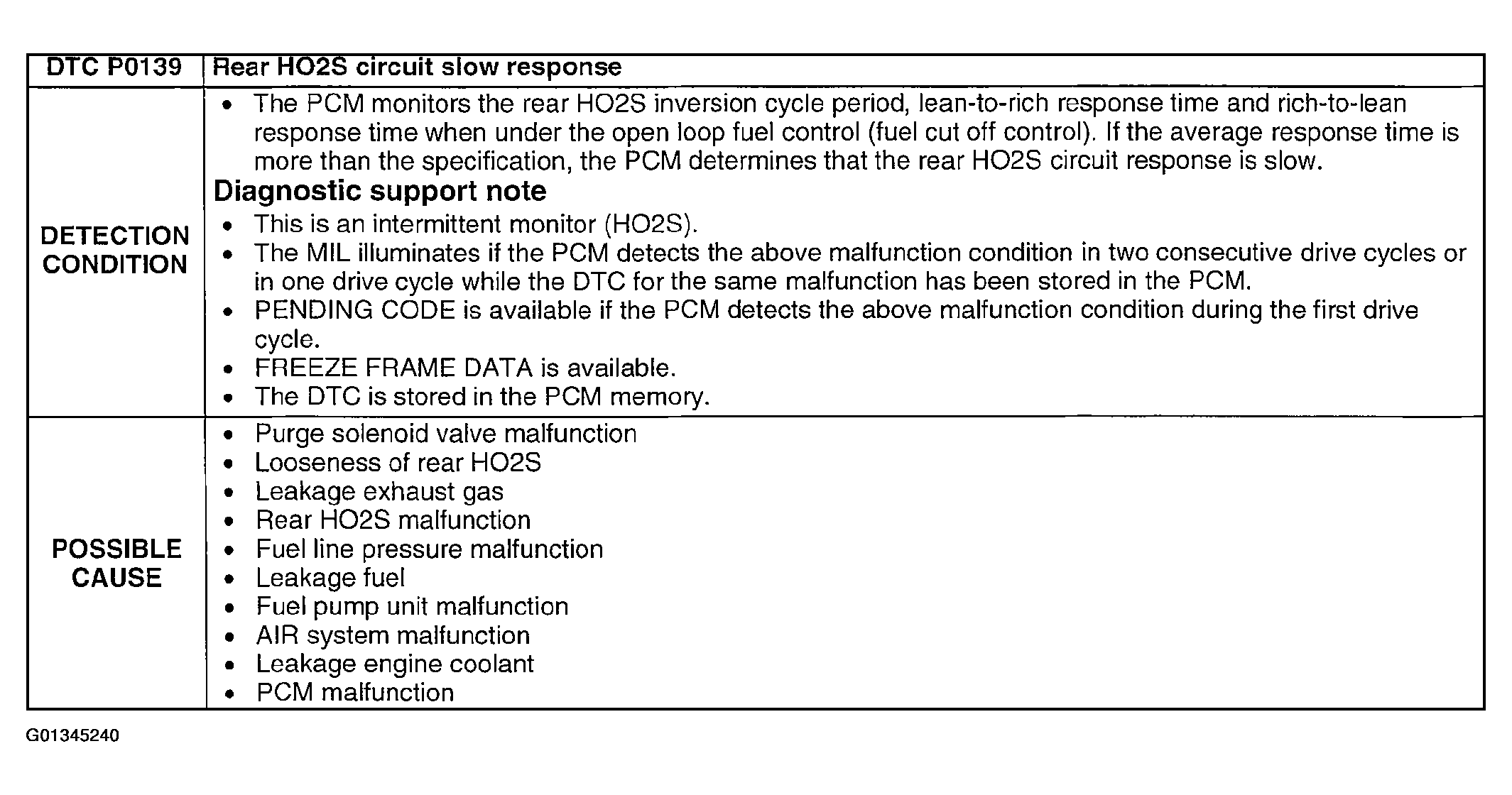

Fig 1: DTC P0139 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

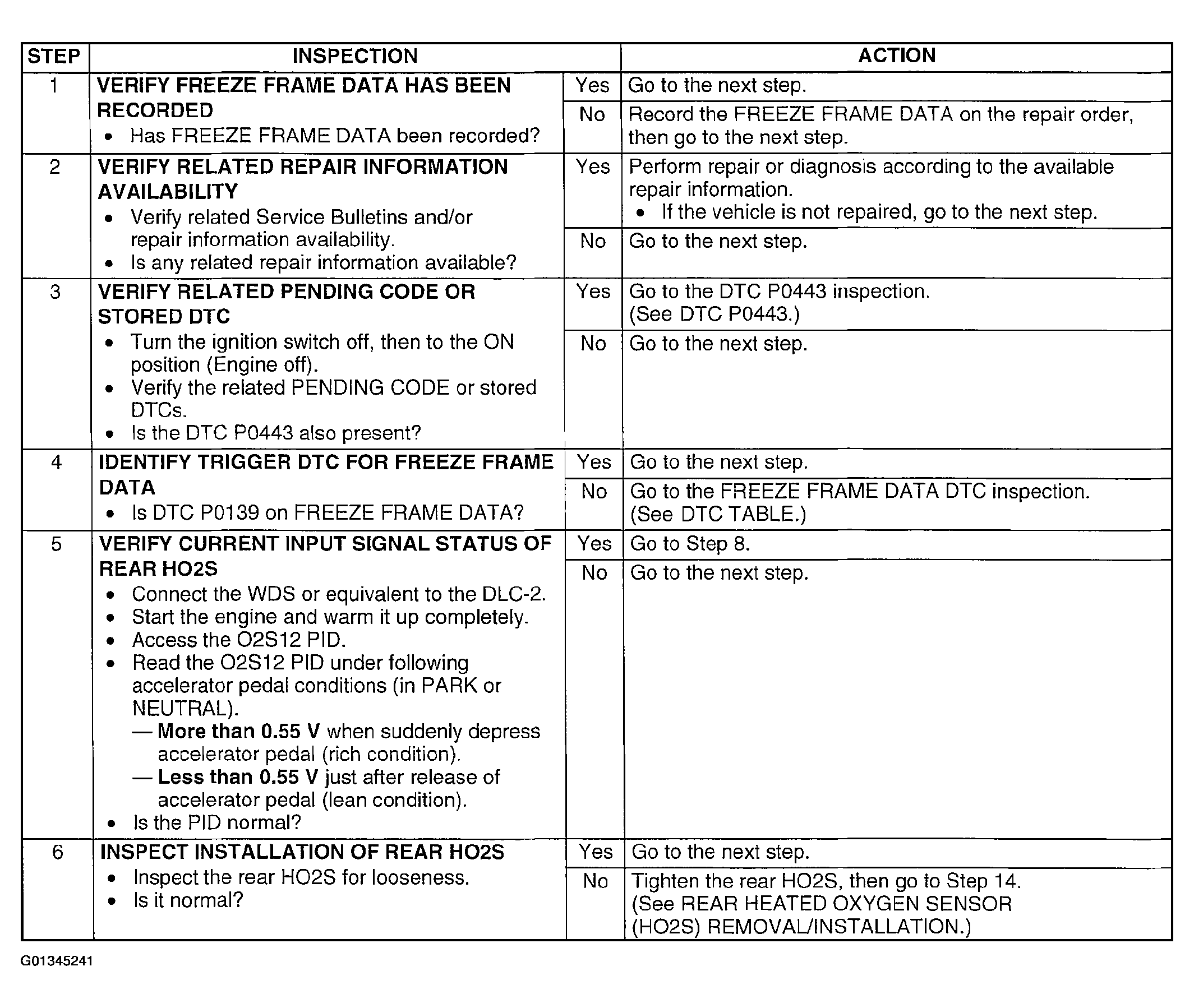

Fig 2: DTC P0139 Diagnostic Procedure Chart (Step 1-6)

Courtesy of MAZDA MOTORS CORP.

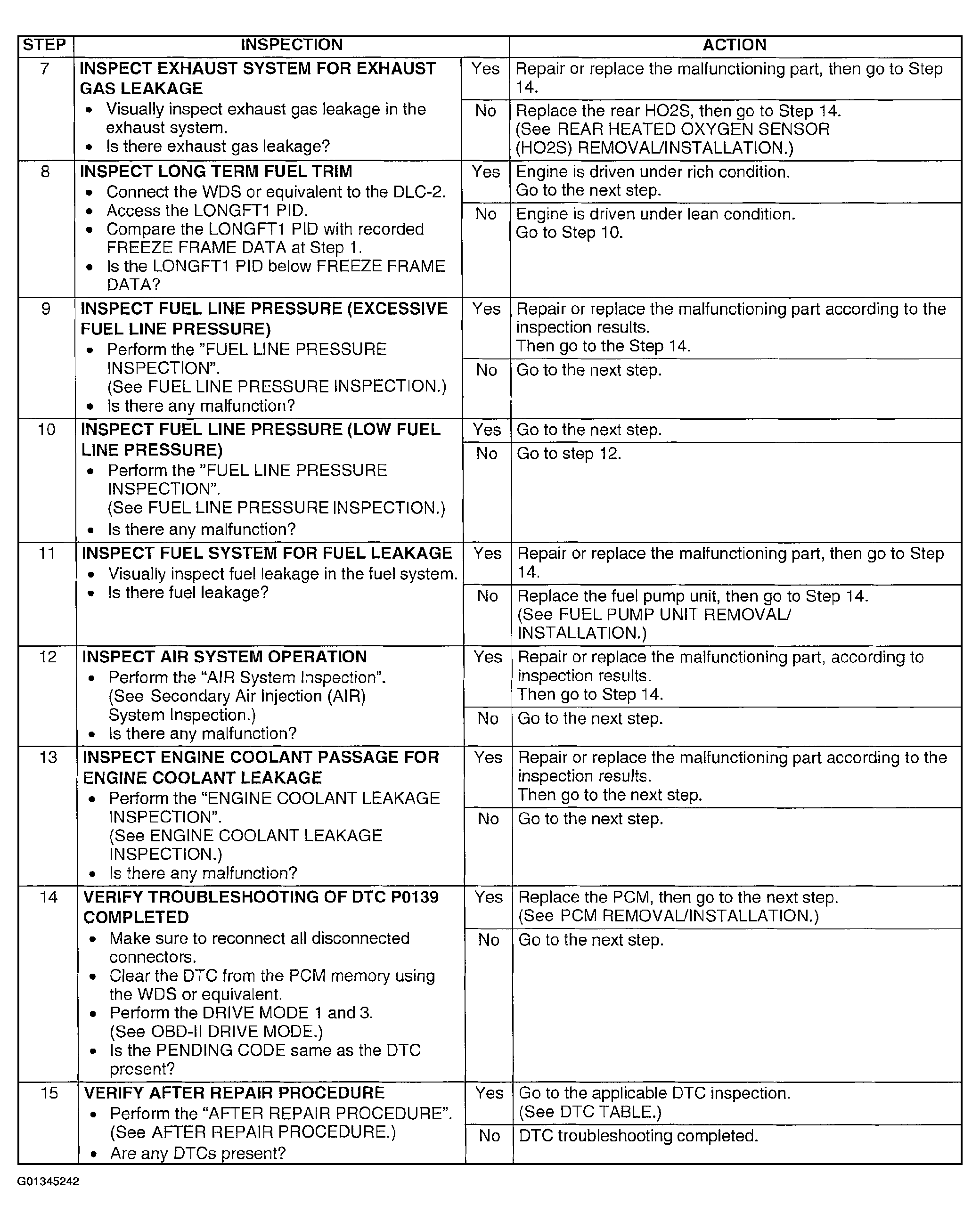

Fig 3: DTC P0139 Diagnostic Procedure Chart (Step 7-15)

Courtesy of MAZDA MOTORS CORP.
