DTC P0126, P0128: Insufficient Coolant Temperature For Stable Operation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

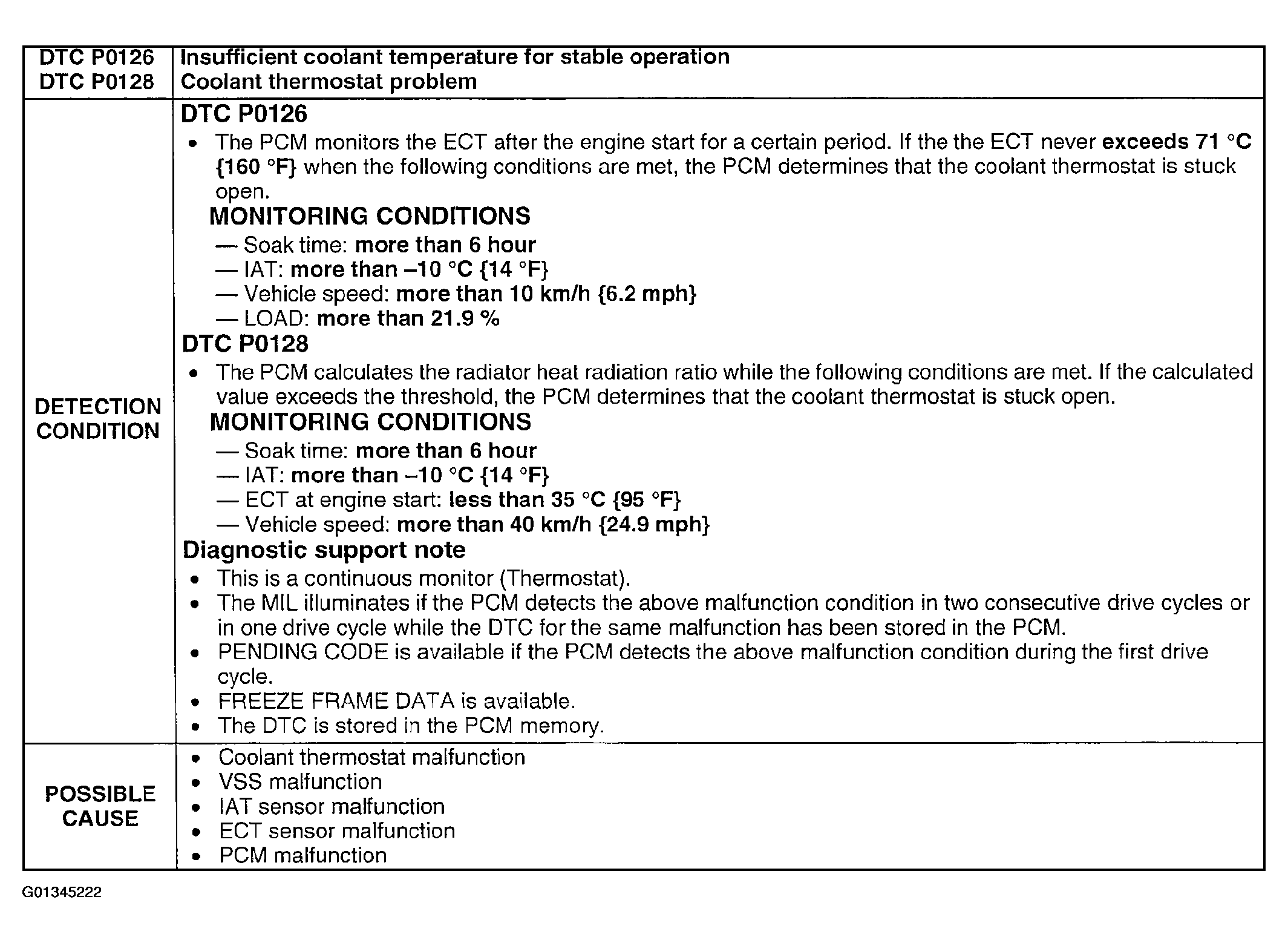

Fig 1: DTC P0126, P0128 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

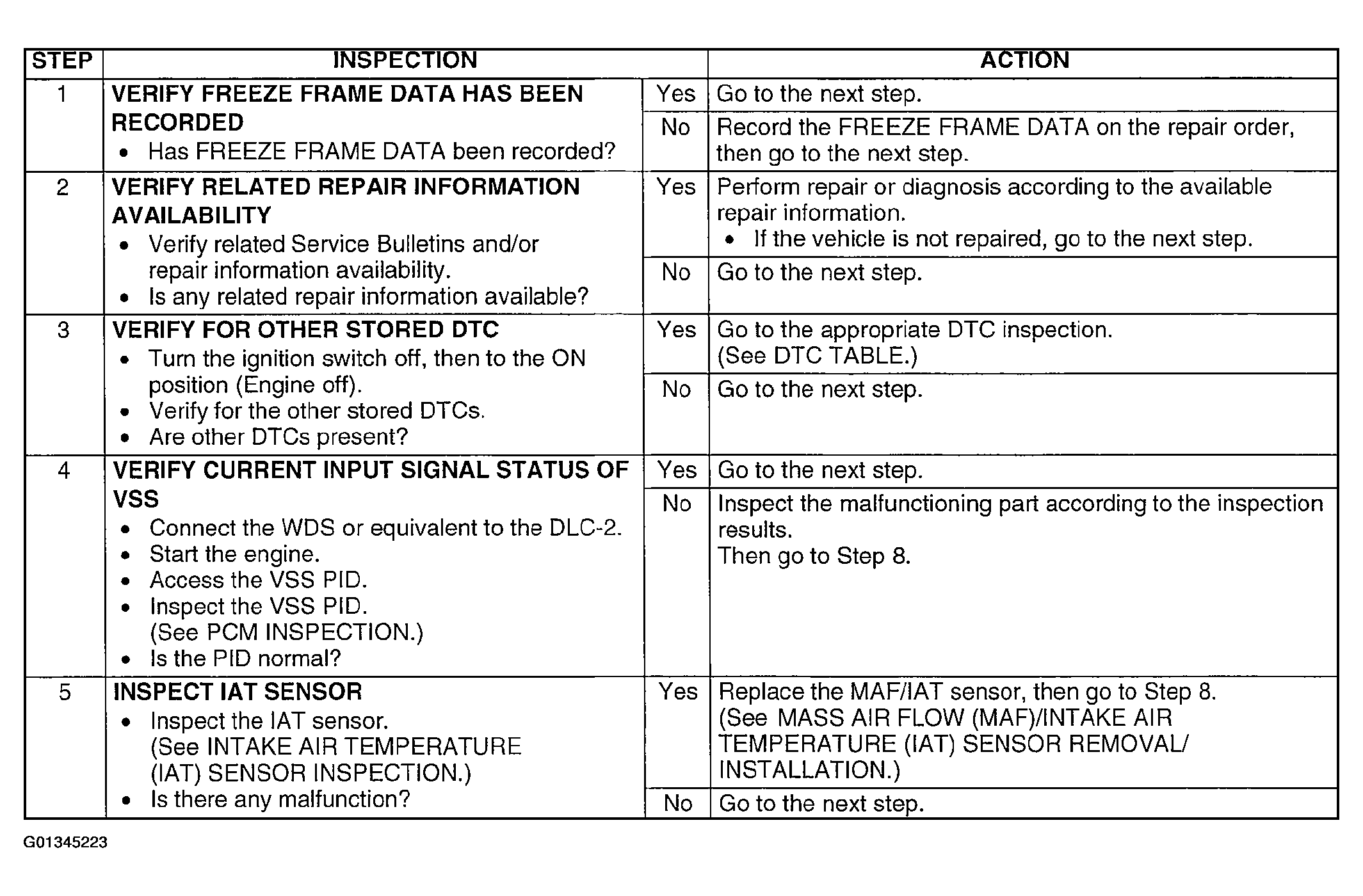

Fig 2: DTC P0126, P0128 Diagnostic Procedure Chart (Step 1-5)

Courtesy of MAZDA MOTORS CORP.

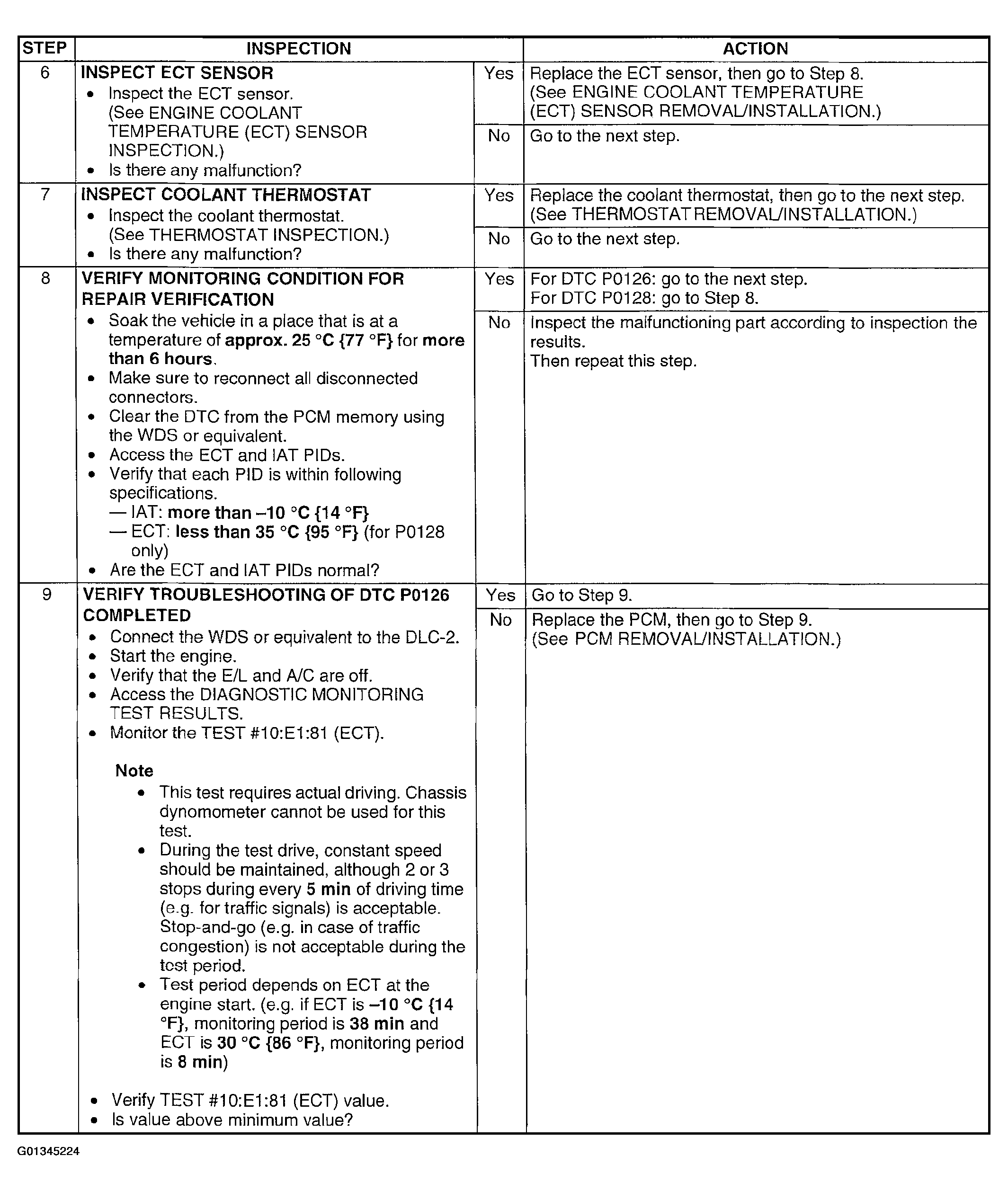

Fig 3: DTC P0126, P0128 Diagnostic Procedure Chart (Step 6-9)

Courtesy of MAZDA MOTORS CORP.

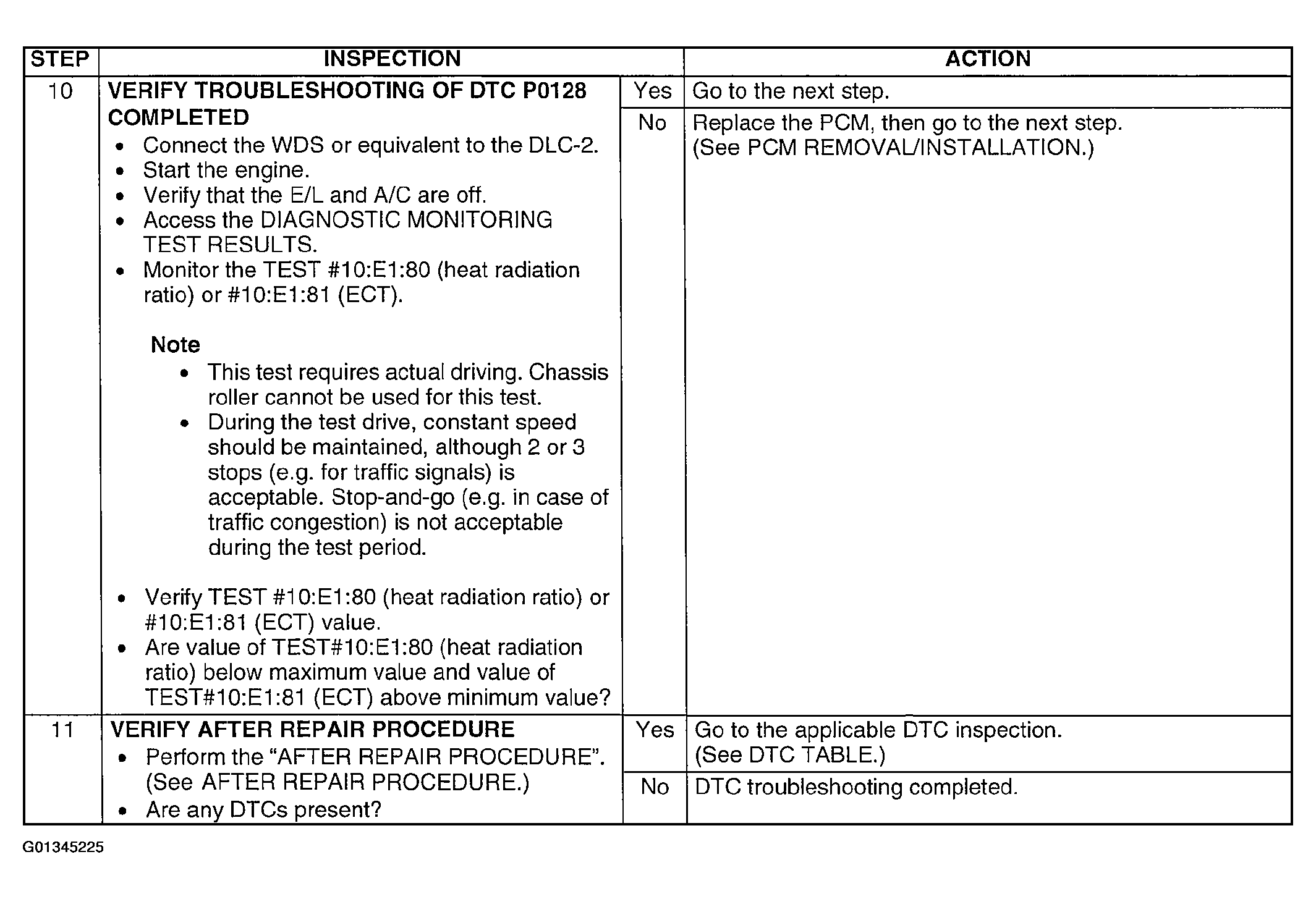

Fig 4: DTC P0126, P0128 Diagnostic Procedure Chart (Step 10-11)

Courtesy of MAZDA MOTORS CORP.
