Oil Seal (Side Gear) Assembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply differential oil to the lip of a new oil seal.
  2. Assemble the oil seal using the SSTs.

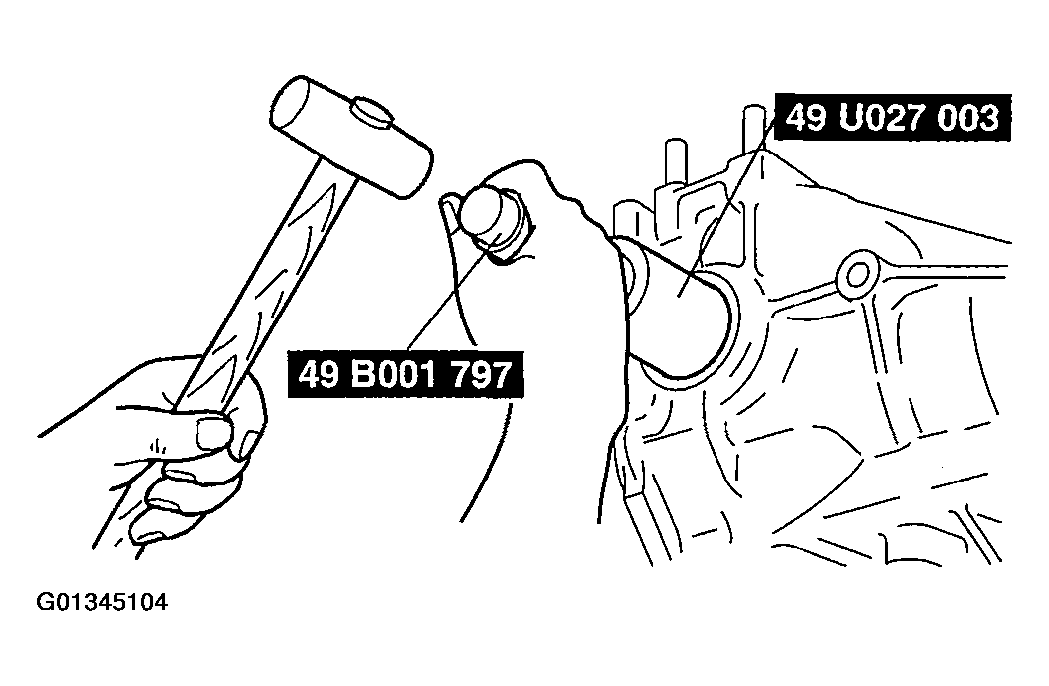

    Fig 1: Assembling Oil Seal
    G01345104Courtesy of MAZDA MOTORS CORP.
