Front Fog Light (Sports)

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the tire air pressure to the specification.
  2. Position the unloaded vehicle on a flat, level surface.
  3. Seat one person in the driver's seat.
  4. Position the vehicle 3 m {10 ft}  in front of a white screen.
    Fig 1: Positioning Vehicle For Front Fog Light Adjustment - Sports
    G02564053Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts, then pull back the mudguard.
  6. While adjusting one fog light, mask the other.
  7. Start the engine to charge the battery.
  8. Turn the front fog light on.
  9. Loosen the adjusting bolt.
  10. Adjust the adjusting bolt in the direction shown by the arrow to adjust the brightness border.

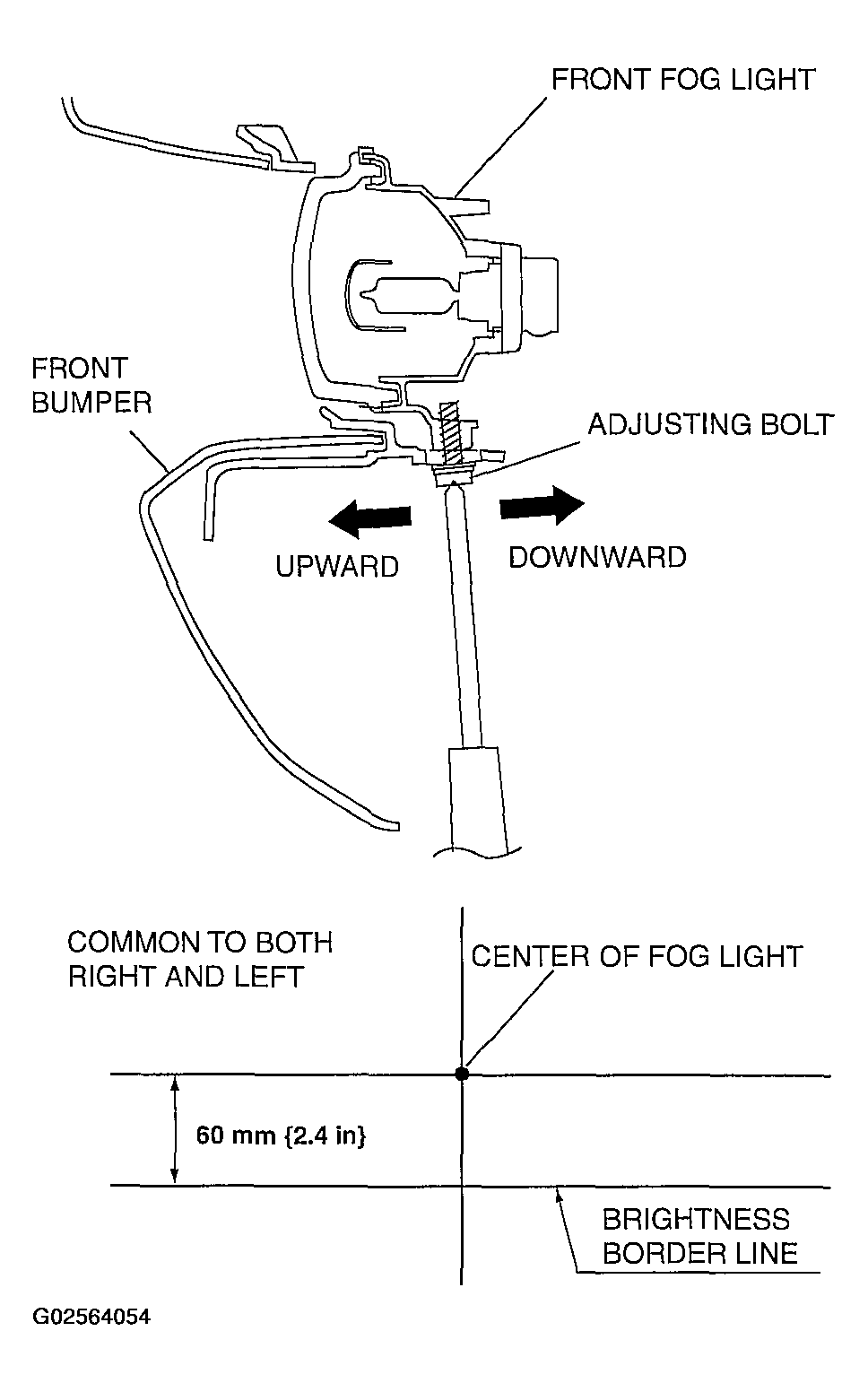

    Fig 2: Adjusting Front Fog Lights - Sports
    G02564054Courtesy of MAZDA MOTORS CORP.
  11. Tighten the adjusting bolt.
