Water Pump Drive Belt Pulley Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump pulley using the SST  .

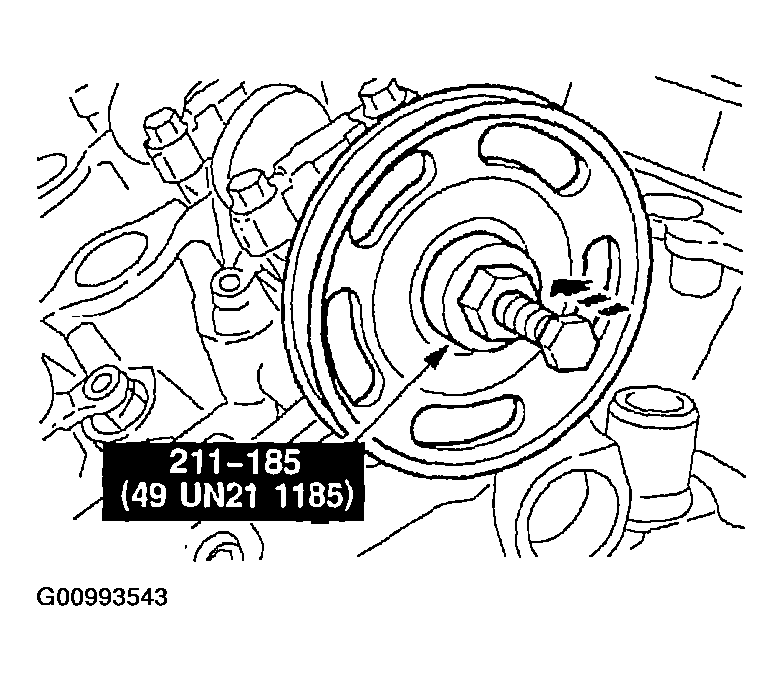

    Fig 1: Installing Water Pump Pulley
    G00993543Courtesy of MAZDA MOTORS CORP.
