Water Pump Belt Pulley Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

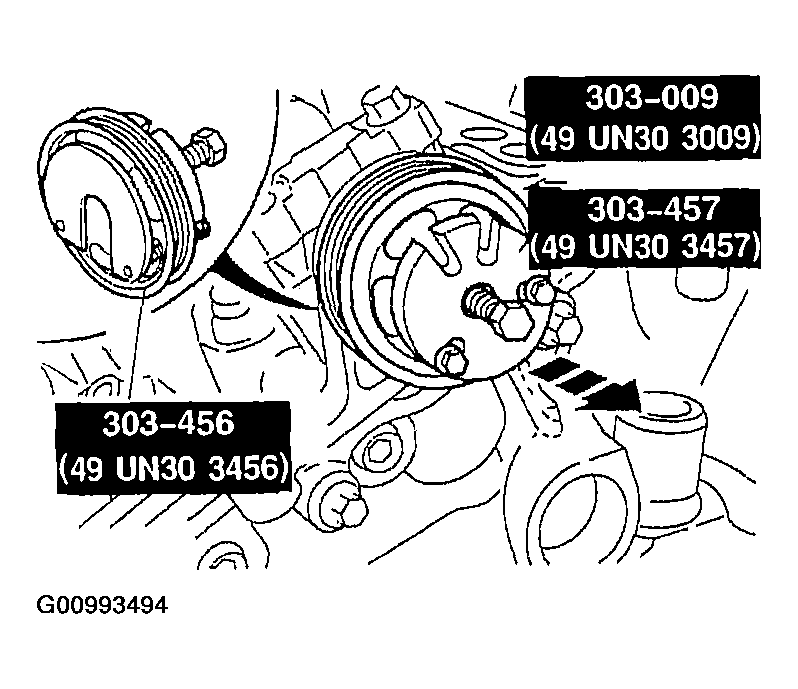

Replace part A of the SST 303-009 (49 UN30 3009) with the SST 303-457 (49 UN30 3457).

Fig 1: Identifying SST Components
Courtesy of MAZDA MOTORS CORP.
Remove the water pump pulley using the SSTs .

Fig 2: Removing Water Pump Pulley
Courtesy of MAZDA MOTORS CORP.
