Cylinder Head Cover (RH) Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts in the order shown.

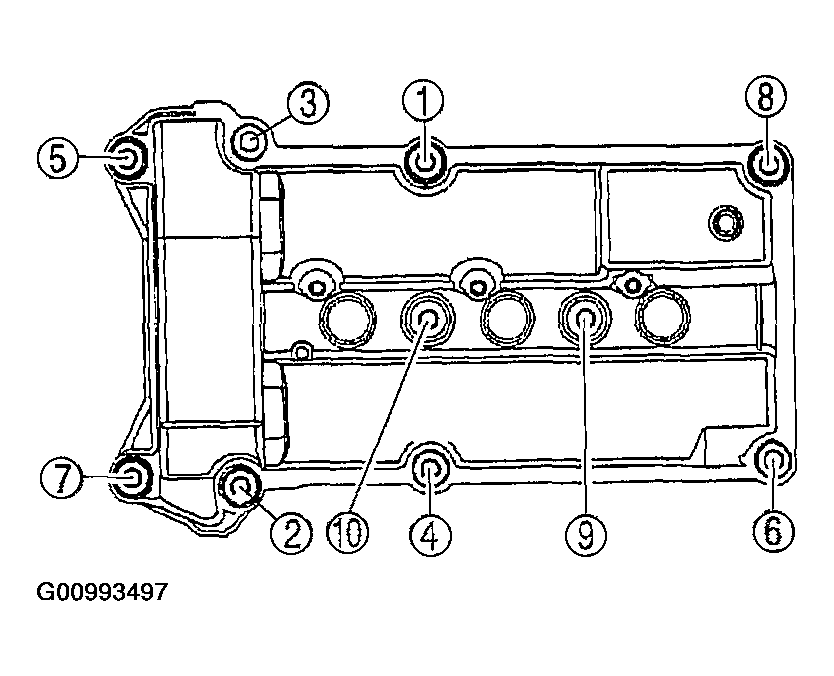

    Fig 1: Cylinder Head Cover (RH) Bolt Removal Sequence
    G00993497Courtesy of MAZDA MOTORS CORP.
