Cylinder Head Cover (RH) Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply silicone sealant to the mating faces as shown.

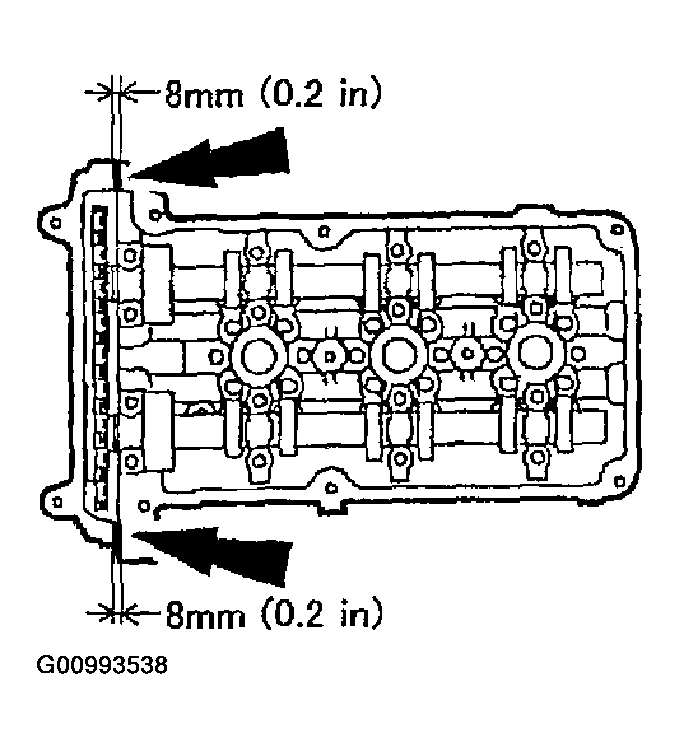

    Fig 1: Applying Silicone Sealant To Mating Faces Of Cylinder Head Cover (RH)
    G00993538Courtesy of MAZDA MOTORS CORP.
  2. Install the cylinder head cover with a new gasket.
  3. Tighten the bolts in the order shown.

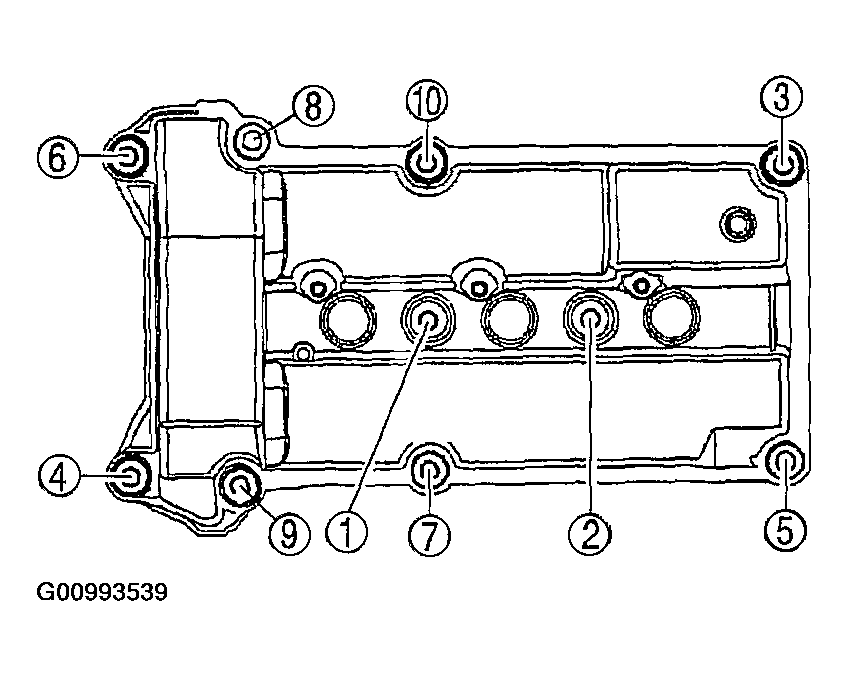

    Fig 2: Cylinder Head Cover (RH) Bolt Tightening Sequence
    G00993539Courtesy of MAZDA MOTORS CORP.
