Crankshaft Position (CKP) Sensor Pulse Wheel Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the keyway marked 25/34 Y (Blue paint stripe to install the rotor with the indentation towards the front.

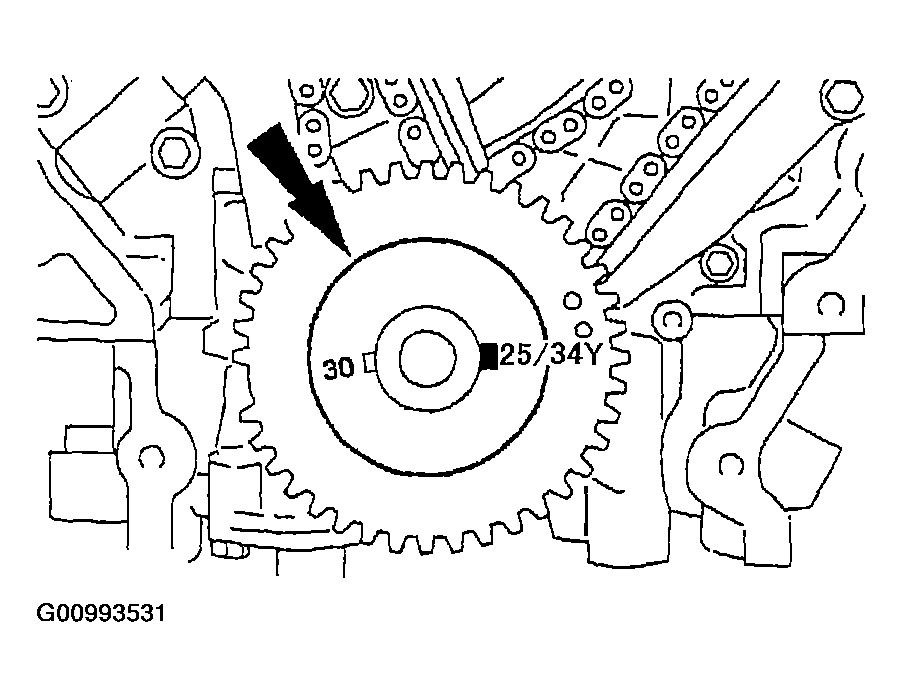

    Fig 1: Using Marked Keyway To Install Rotor
    G00993531Courtesy of MAZDA MOTORS CORP.
