Rear Oil Seal Replacement

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Cut the oil seal lip using a razor knife.
  4. Remove the rear oil seal using a screwdriver as shown.

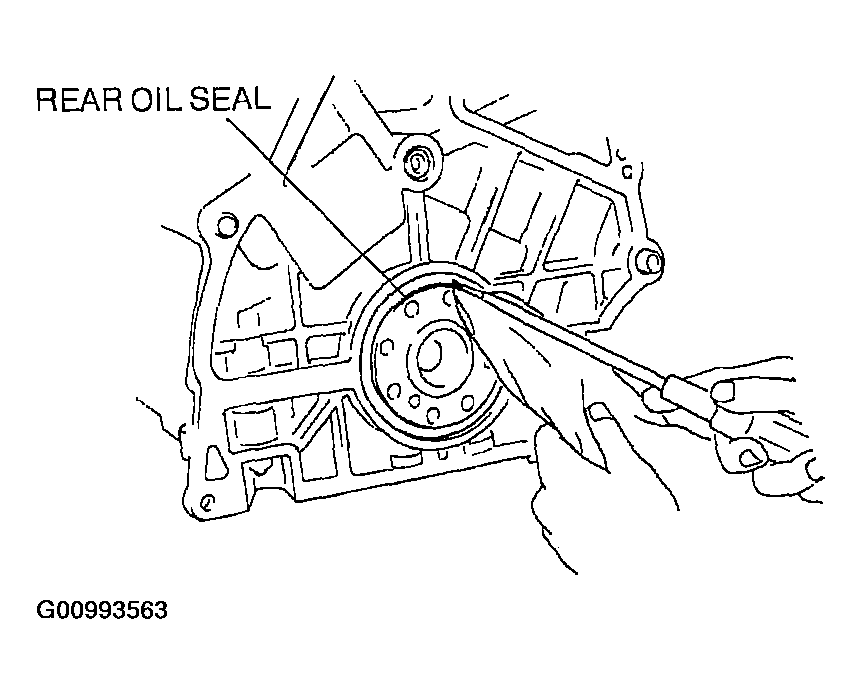

    Fig 1: Removing Rear Oil Seal
    G00993563Courtesy of MAZDA MOTORS CORP.
  5. Install the rear oil with part A of the SST  303-178 (49 UN01 070) and the SST  303-384 (49 UN30 3384).
    Fig 2: Identifying SST Components
    G00993564Courtesy of MAZDA MOTORS CORP.
  6. Install the studs of the SST  303-384 (49 UN30 3384) as indicated in the figure.
    Fig 3: Installing Special Tool Studs
    G00993565Courtesy of MAZDA MOTORS CORP.
  7. Apply clean engine oil to the oil seal.
  8. Push the oil seal slightly in by hand.
  9. Install part A of the SST  303-178 (UN01 070) and compress the oil seal with the nuts of the SST  303-384 (49 UN30 3384).
  10. Install the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION .)
  11. Install the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)

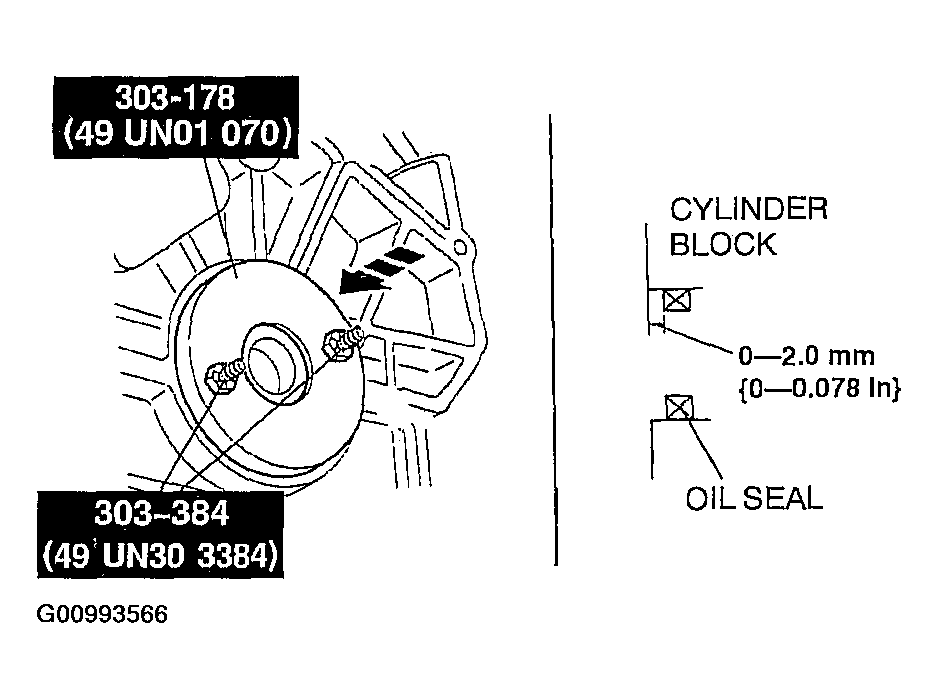

    Fig 4: Compressing Oil Seal With Nuts Of Special Tool
    G00993566Courtesy of MAZDA MOTORS CORP.
