Mechanical Location Index

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For cylinder head and cylinder block overhaul, see 3.0L (AJ WITHOUT VARIABLE VALVE TIMING) V6 OVERHAUL- MAZDA6 & MPV .

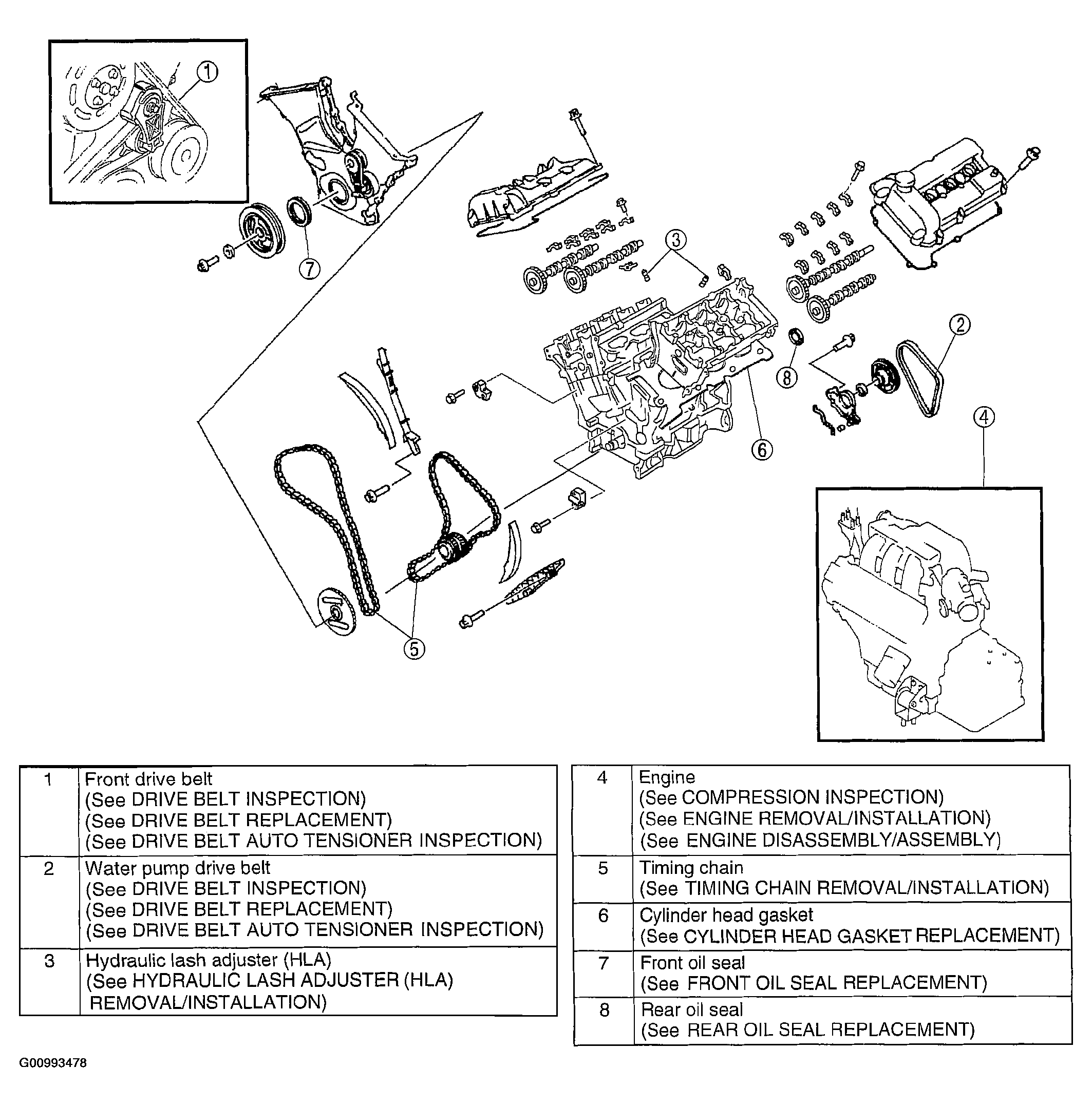

Fig 1: Mechanical Location Index
G00993478Courtesy of MAZDA MOTORS CORP.
