Vehicles With Auto Tensioner
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the plug hole plate.

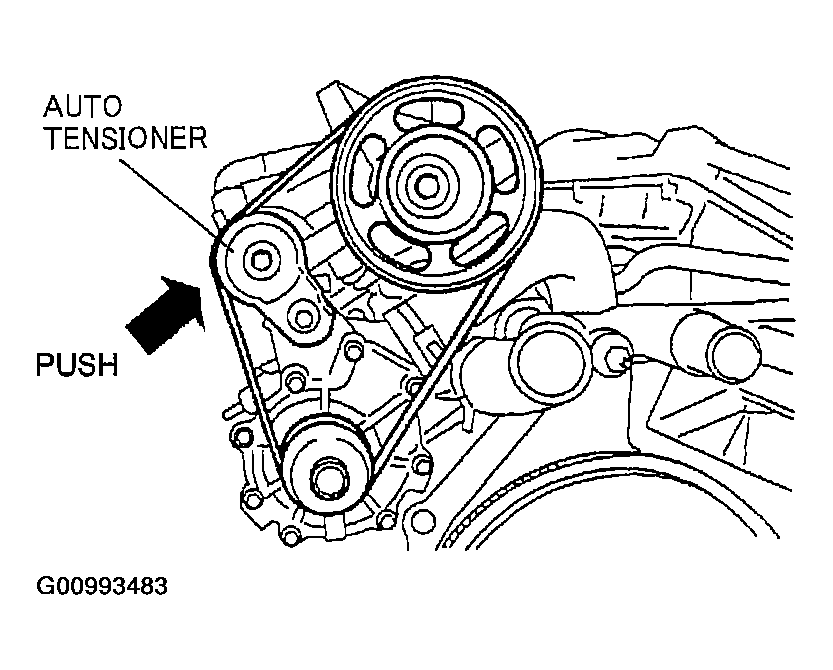

- Rotate the auto tensioner clockwise by hand to release the drive belt tension and remove the belt.
Courtesy of MAZDA MOTORS CORP.
- Reinstall the water pump driver belt or install a new drive belt.
