Water Pump Drive Belt Auto TENSIONER

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the water pump drive belt. (See WATER PUMP DRIVE BELT .)
Verify that the drive belt auto tensioner moves smoothly in the operational direction.
- Replace the drive belt auto tensioner if necessary.

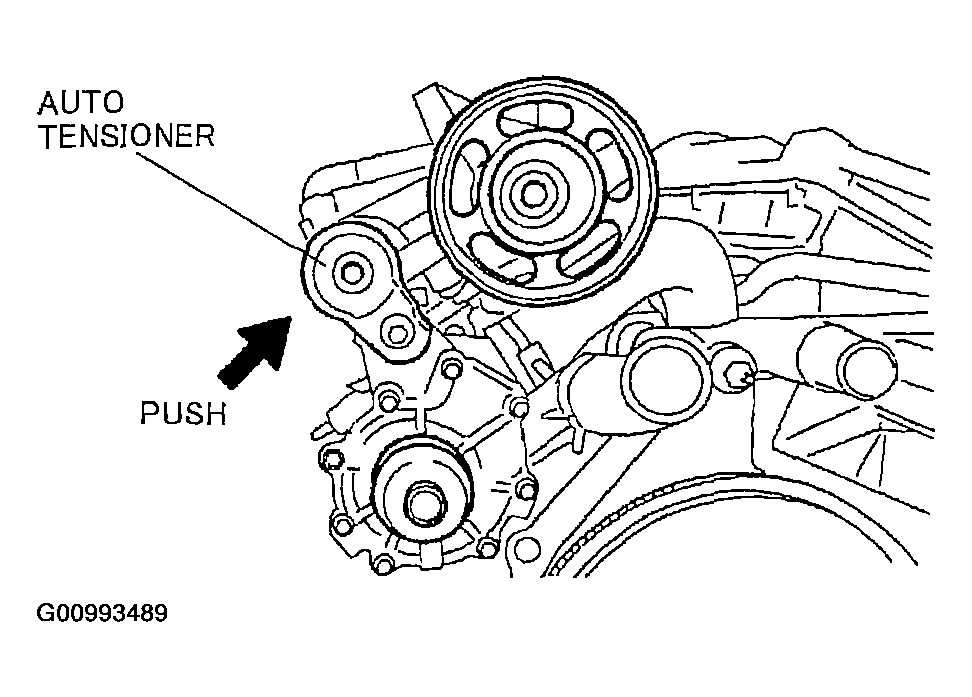

  Fig 1: Verifying Smooth Movement Of Auto Tensioner
  Courtesy of MAZDA MOTORS CORP.
Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.
- Replace the drive belt auto tensioner if necessary.
Install the water pump drive belt.
Tightening Torque

8-12 N.m {82-122 kgf.cm, 71-106 in.lbf}

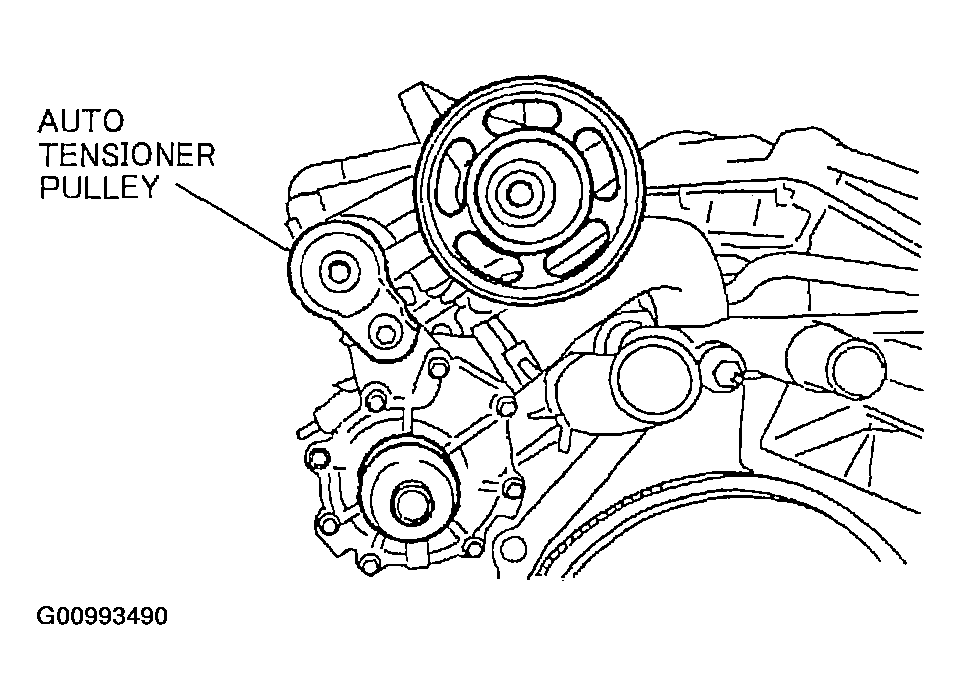

Fig 2: Locating Auto Tensioner Pulley
Courtesy of MAZDA MOTORS CORP.
