Front Drive Belt Auto TENSIONER

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front drive belt. (See FRONT DRIVE BELT .)
Verify that the drive belt tensioner moves smoothly in the operational direction.
- Replace the drive belt auto tensioner if necessary.

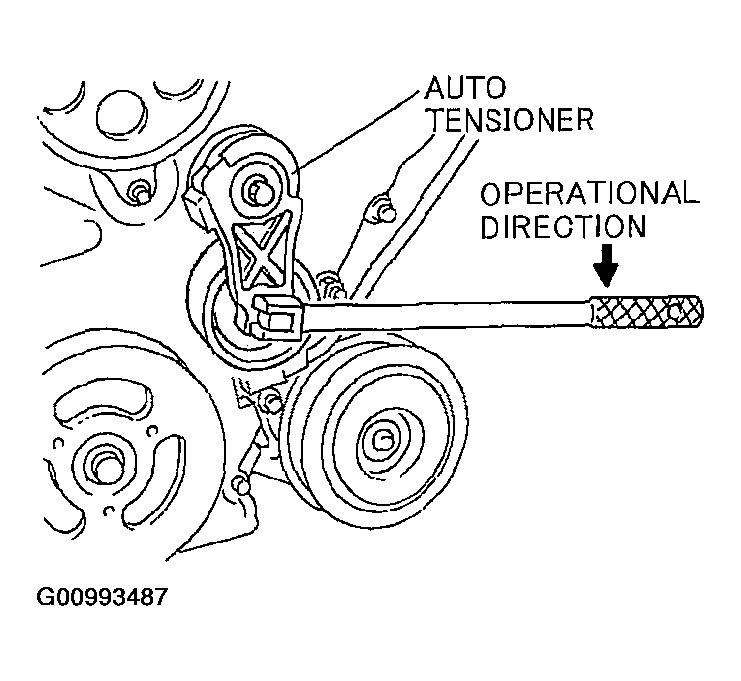

  Fig 1: Verifying Smooth Movement Of Drive Belt Tensioner
  Courtesy of MAZDA MOTORS CORP.
Turn the drive belt auto tensioner pulley by hard and verify that it rotates smoothly.
- Replace the drive belt auto tensioner if necessary.
Install the drive belt.
Tightening Torque

20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}

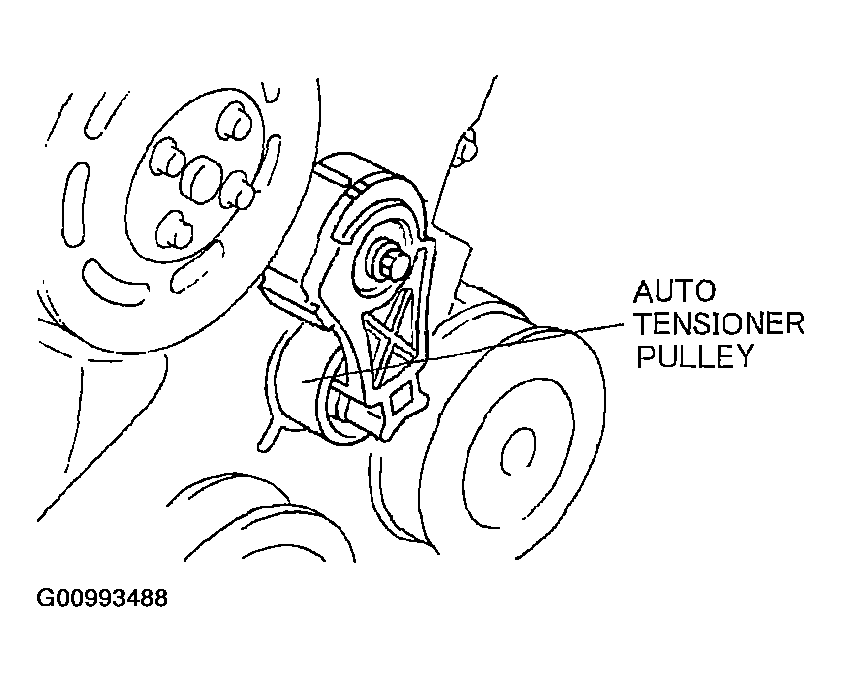

Fig 2: Identifying Auto Tensioner Pulley
Courtesy of MAZDA MOTORS CORP.
