Cylinder Head (LH) Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in several passes in the order shown.

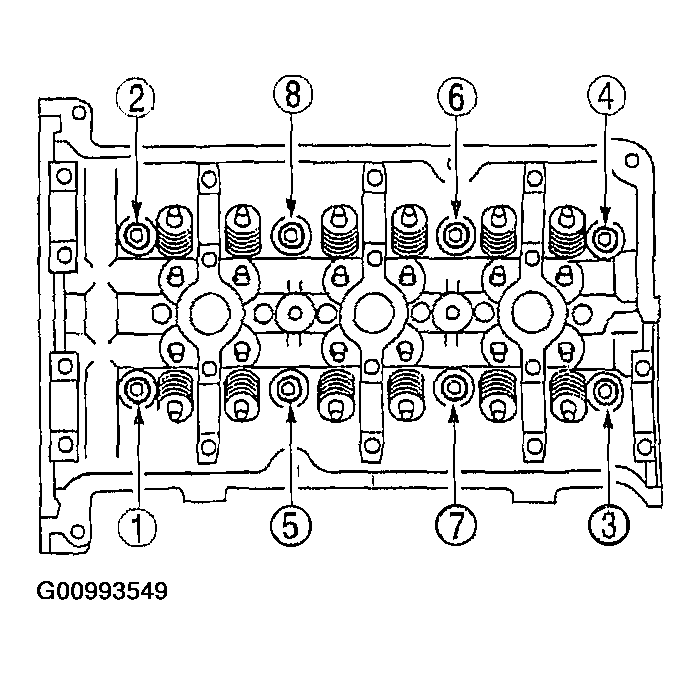

    Fig 1: Cylinder Head (LH) Bolt Loosening Sequence
    G00993549Courtesy of MAZDA MOTORS CORP.
