Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

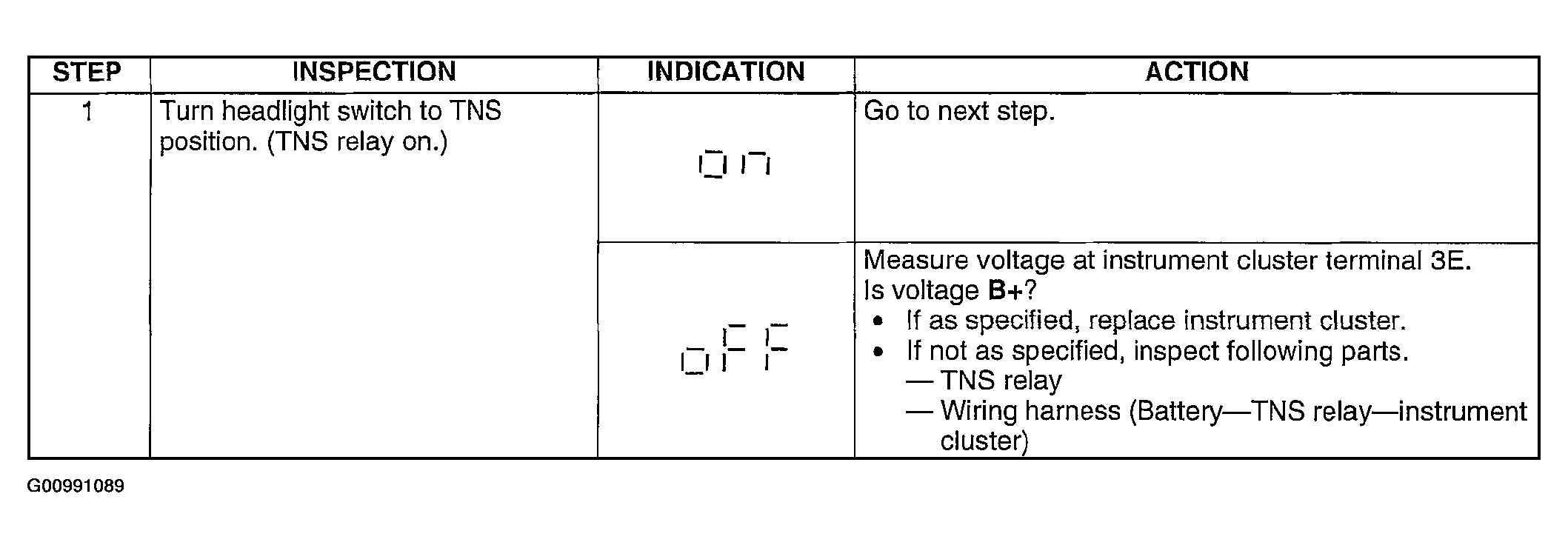

Fig 1: DTC 08: TNS Relay On/Off Signal Diagnostic Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

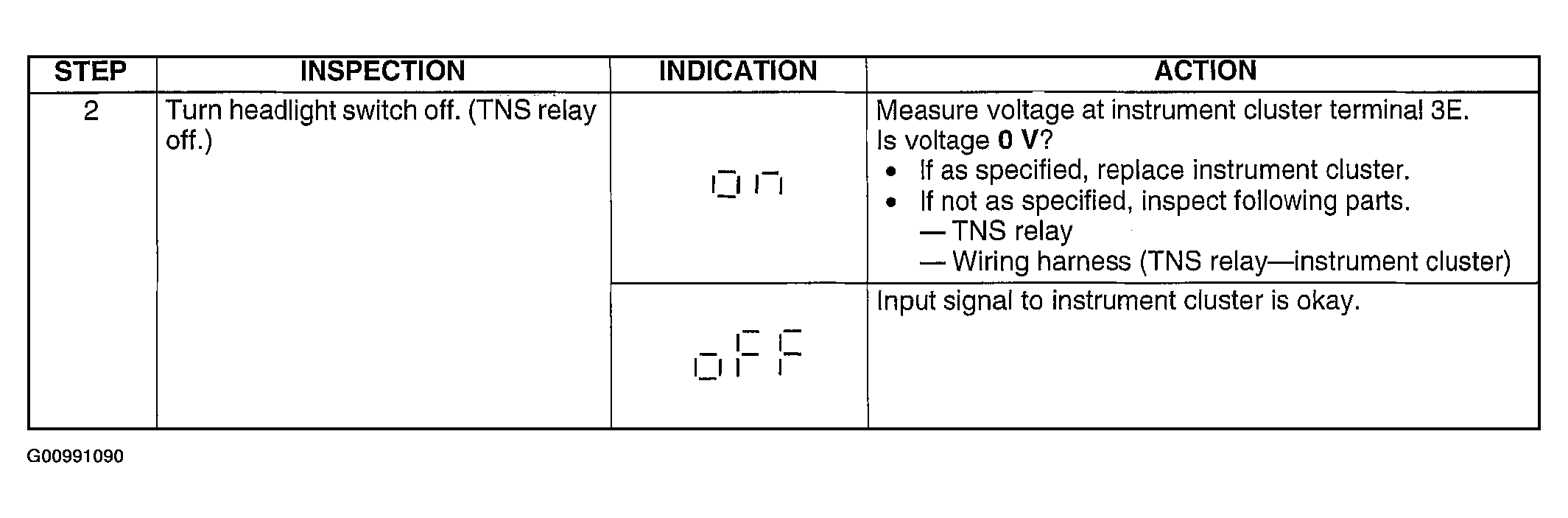

Fig 2: DTC 08: TNS Relay On/Off Signal Diagnostic Procedure (Step 2)

Courtesy of MAZDA MOTORS CORP.
