Antenna Feeder Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)
- Remove the passenger-side side panel. (See SIDE PANEL REMOVAL/INSTALLATION .)
- Disconnect the connection between the antenna and the antenna feeder.

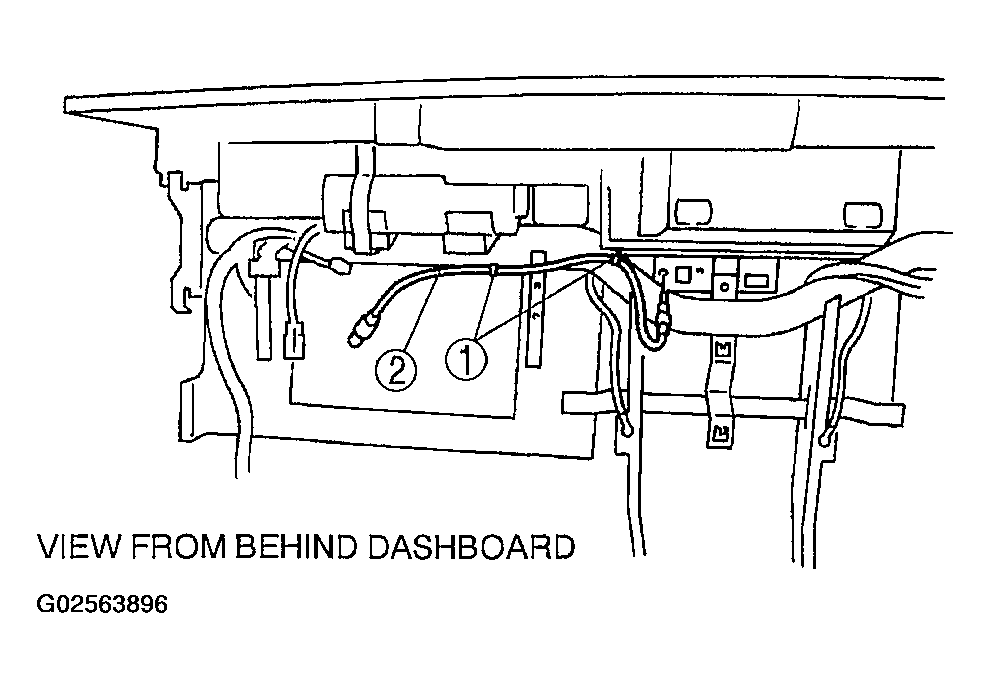

- Remove in the order indicated in the table/figure.REMOVING/INSTALLING ANTENNA FEEDER
Component/Step No. Component Description 1 Clip 2 Antenna feeder - Install in the reverse order of removal.
