Windshield Wiper And Washer Switch

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

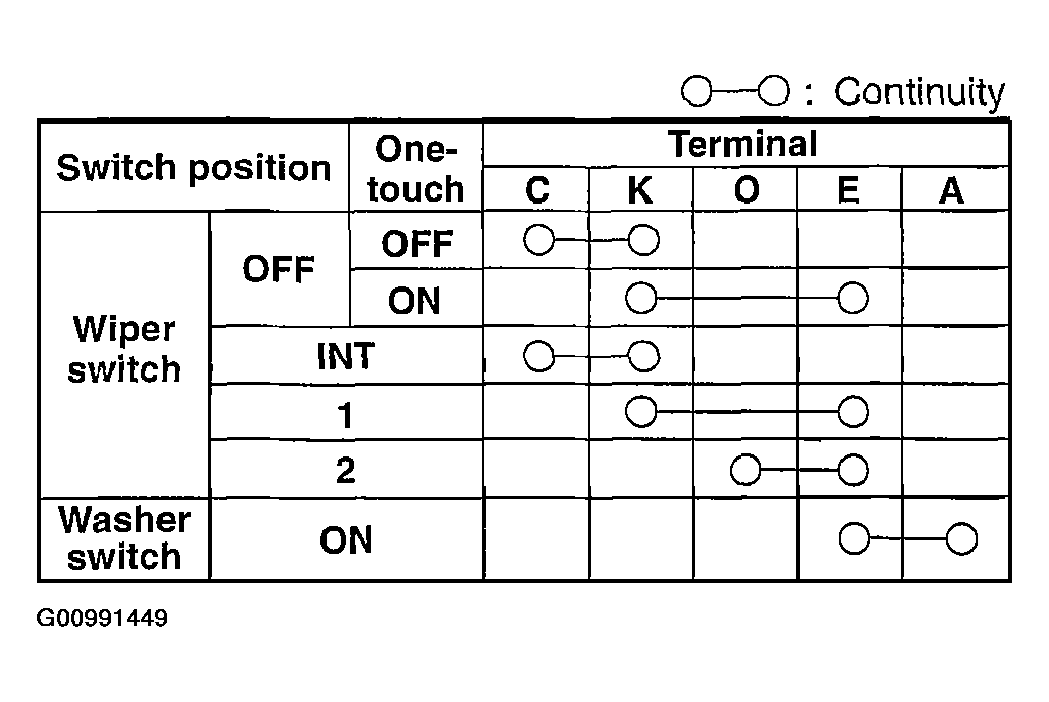

Fig 1: Wiper & Washer Switch Continuity Specifications

Courtesy of MAZDA MOTORS CORP.

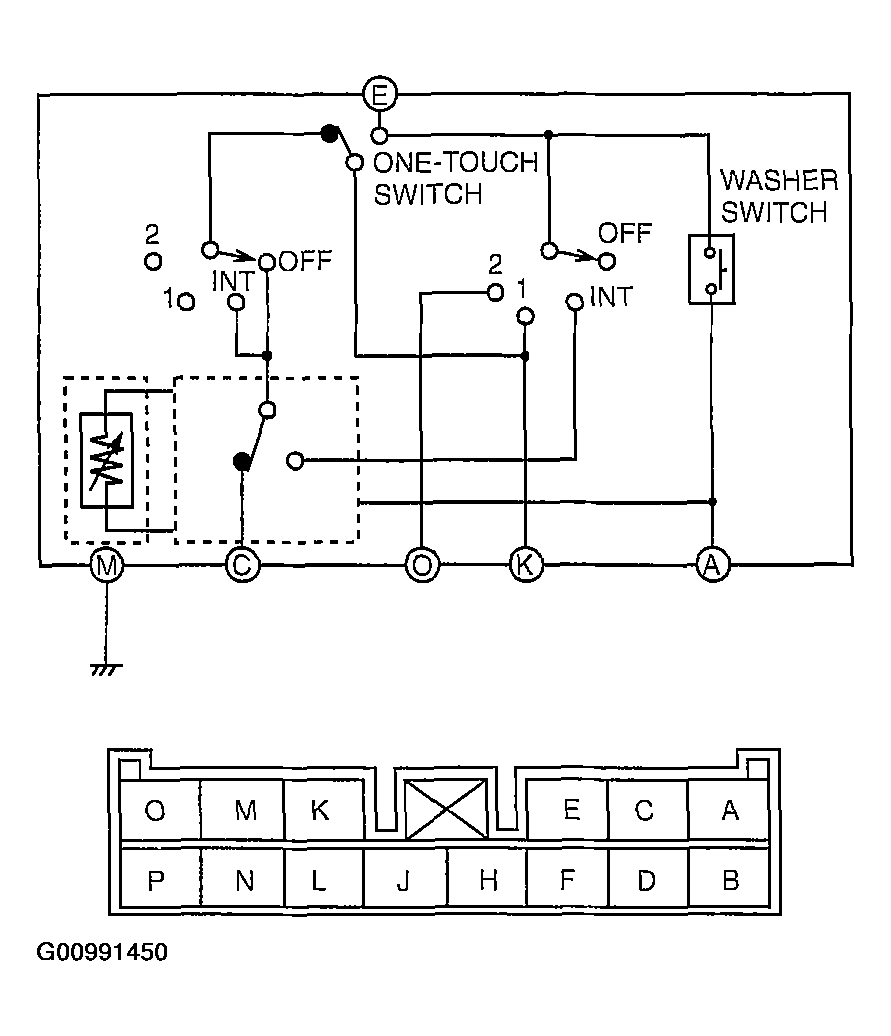

Fig 2: Identifying Wiper & Washer Switch Circuit, Terminals & Connector View

Courtesy of MAZDA MOTORS CORP.
