Windshield Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Insert a needle or equivalent tool into the spray hole of the windshield washer nozzle and adjust the nozzle direction as shown.

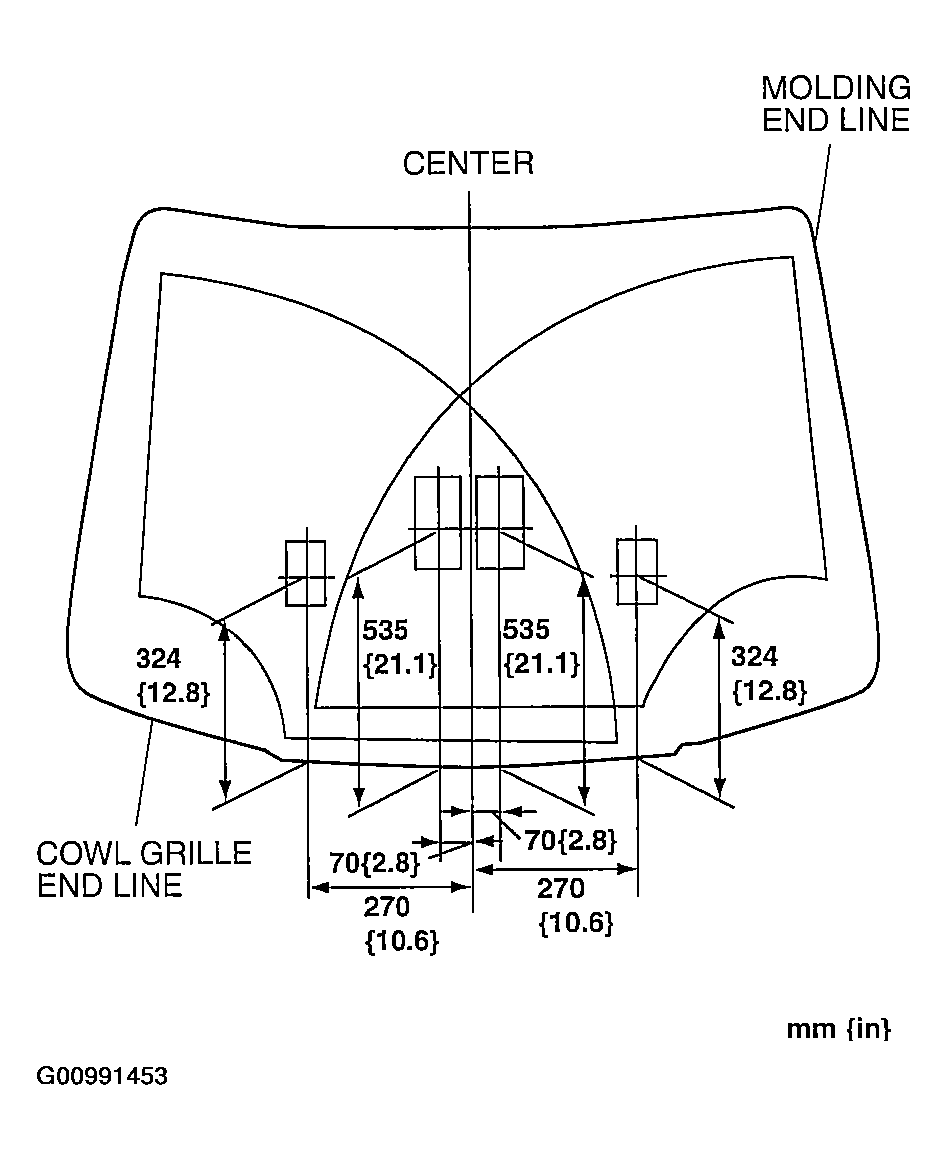

Fig 1: Identifying Windshield Washer Nozzle Spray Pattern
Courtesy of MAZDA MOTORS CORP.
