Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel off the right side mud guard.
Remove in the order indicated in the figure.

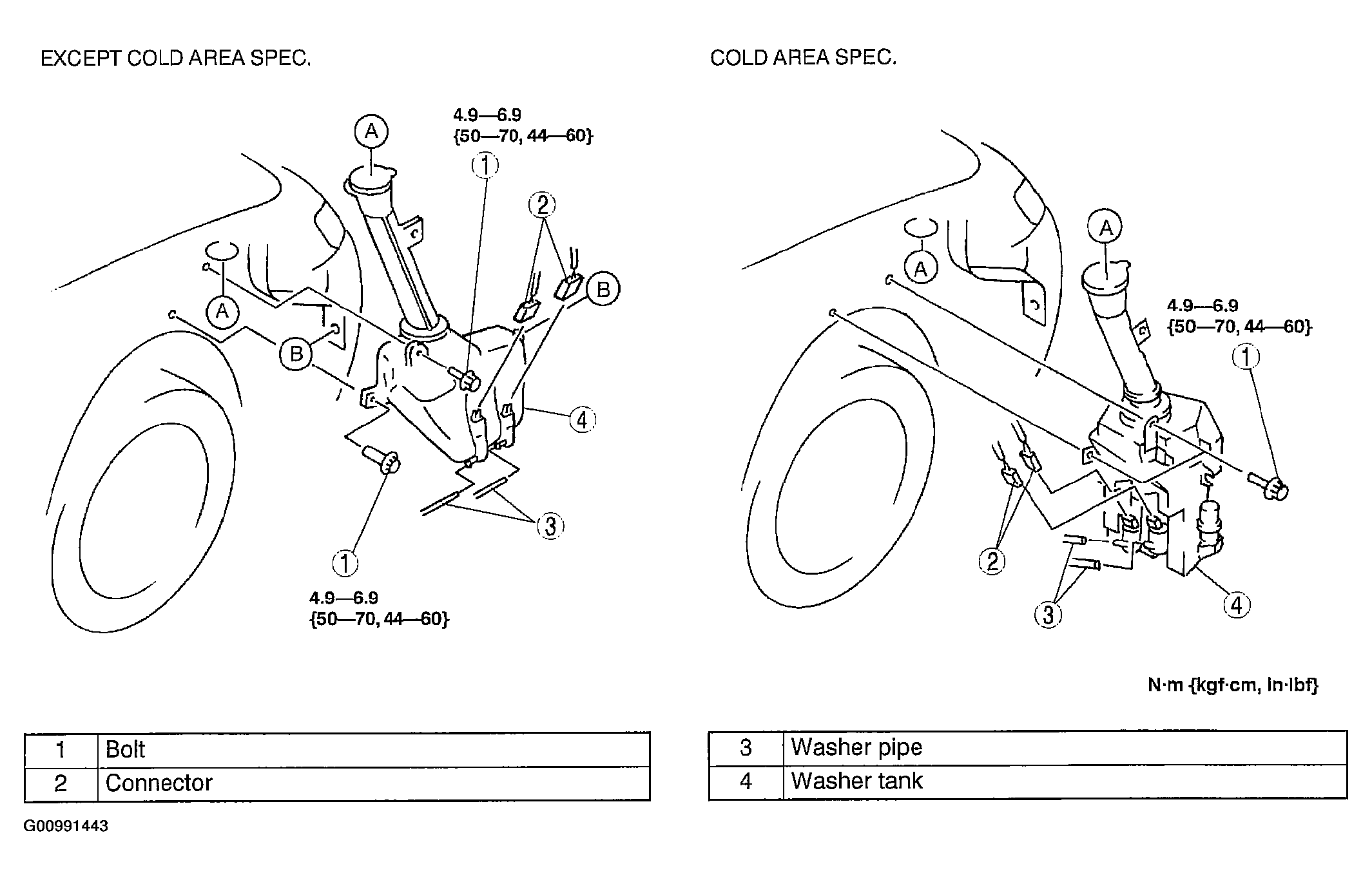

Fig 1: Removing/Installing Washer Tank
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
