Rear Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  3. Remove the rear washer hose from the clips.

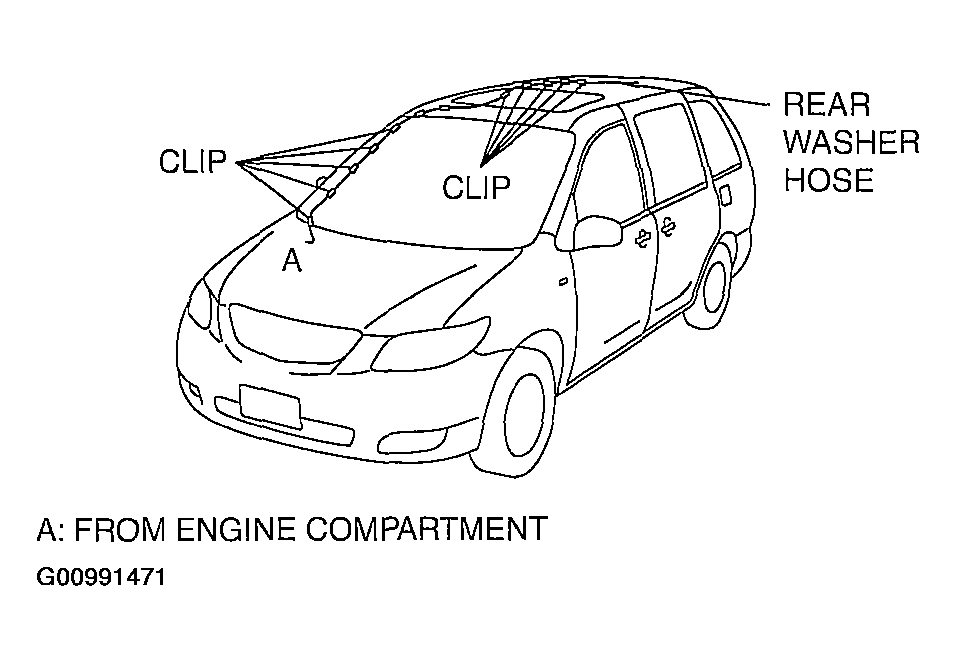

    Fig 1: Locating Rear Washer Hose Clips
    G00991471Courtesy of MAZDA MOTORS CORP.
  4. Remove the door lock control module. (See DOOR LOCK CONTROL MODULE REMOVAL/INSTALLATION .)
  5. Remove the bolts mounting the PCM. (See PCM REMOVAL/INSTALLATION .)
  6. Remove the bolts mounting the blower unit. (See BLOWER UNIT REMOVAL/INSTALLATION .)
  7. Move the blower unit to the cooling unit side.
  8. Remove the grommet of the rear washer hose.

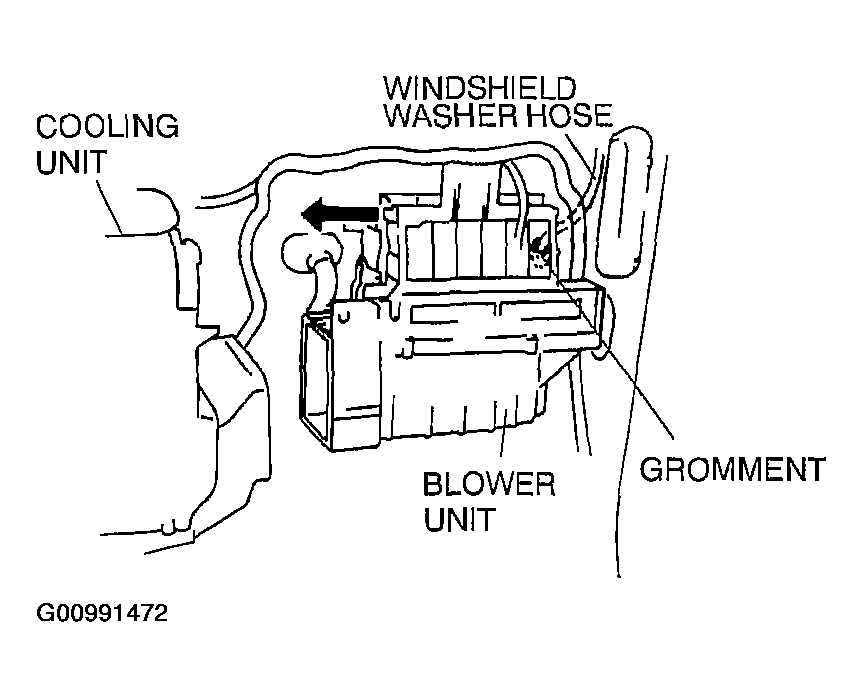

    Fig 2: Identifying Rear Washer Hose Grommet
    G00991472Courtesy of MAZDA MOTORS CORP.
  9. Partially peel off the right side mud guard and remove the rear washer hose from the clip.
  10. Remove the rear washer hose from the washer tank.
    Fig 3: Locating Engine Compartment Rear Washer Hose Clips
    G00991473Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
