Side Air Dam Skirt Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

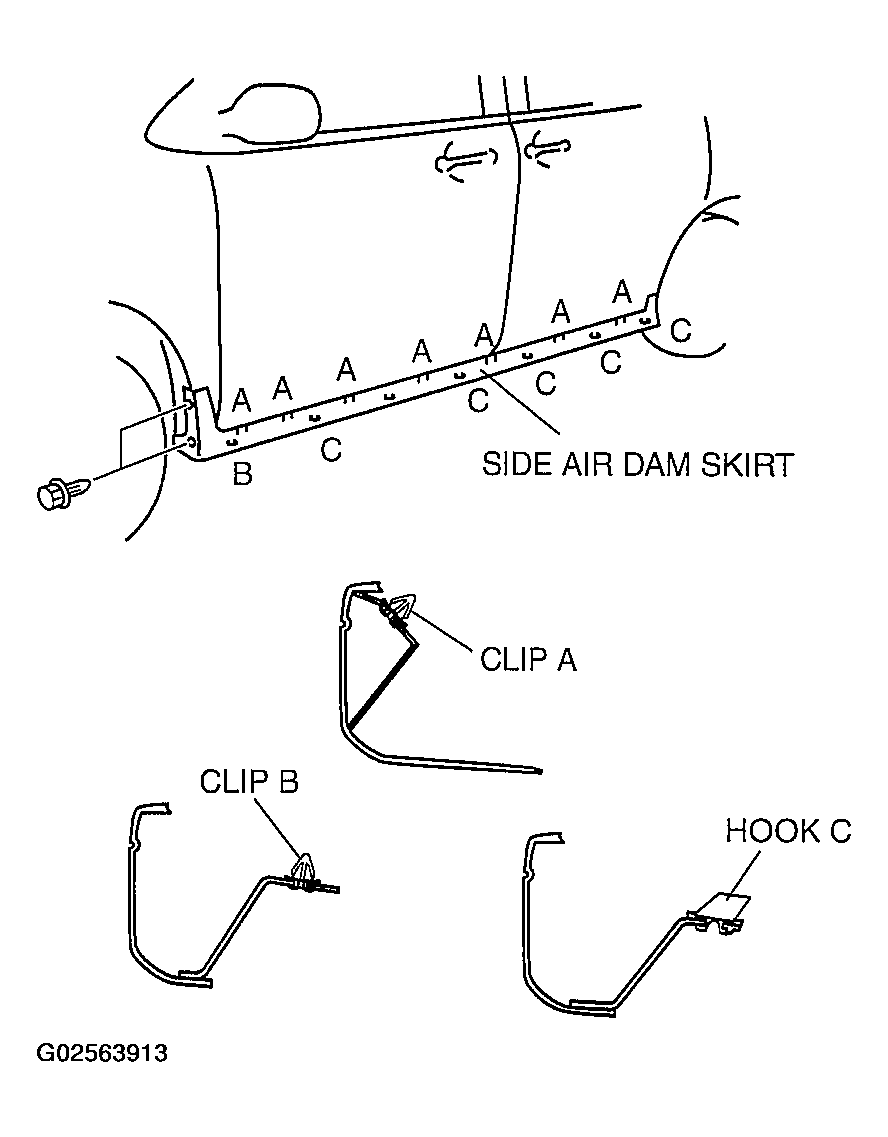

- Disengage clips A using a fastener remover.
Courtesy of MAZDA MOTORS CORP.
- Pull the side air dam skirt downward, then disengage clip B and hooks C, to remove the side air dam skirt.
- Install in the reverse order of removal.
