Radiator Grille Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts, clips and fasteners.

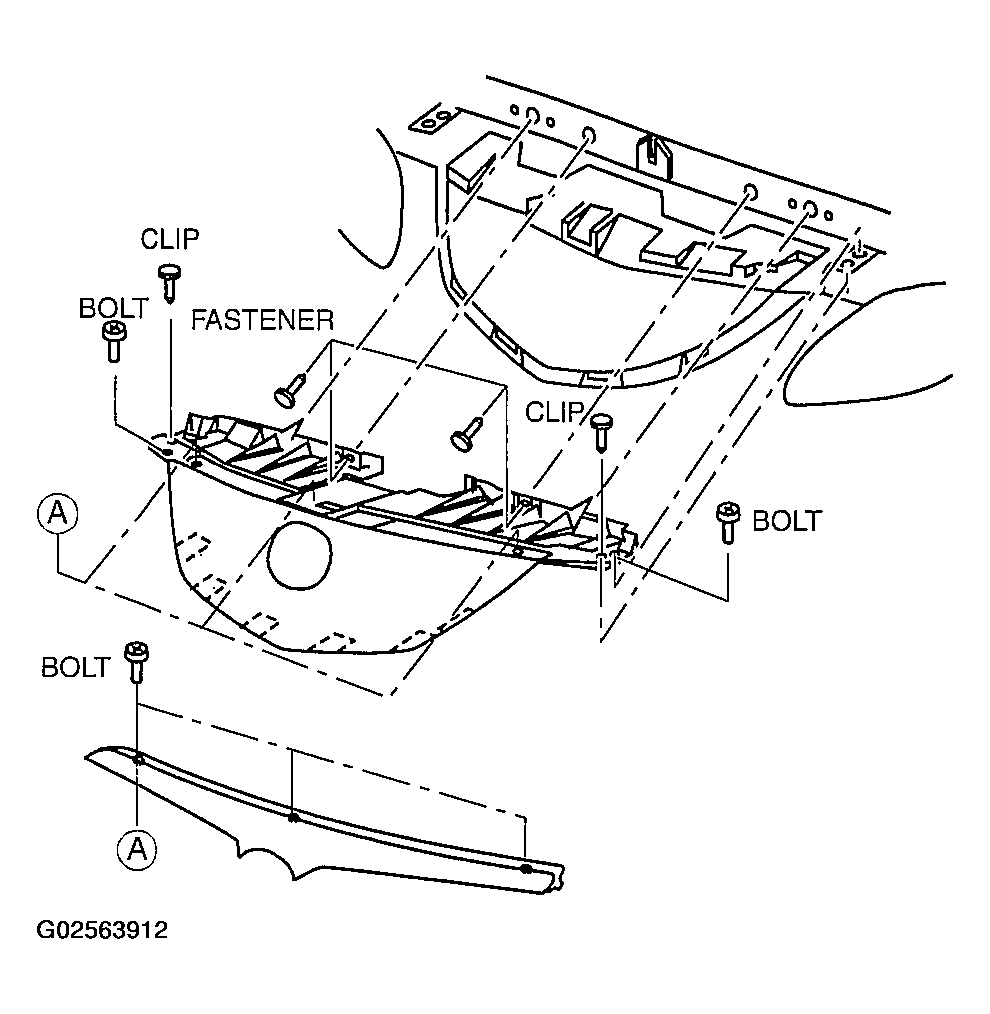

Fig 1: Removing/Installing Radiator Grille
Courtesy of MAZDA MOTORS CORP.
Pull the radiator grille forward.
Install in the reverse order of removal.
