Oil Pump Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the oil pump bolts in the order shown.

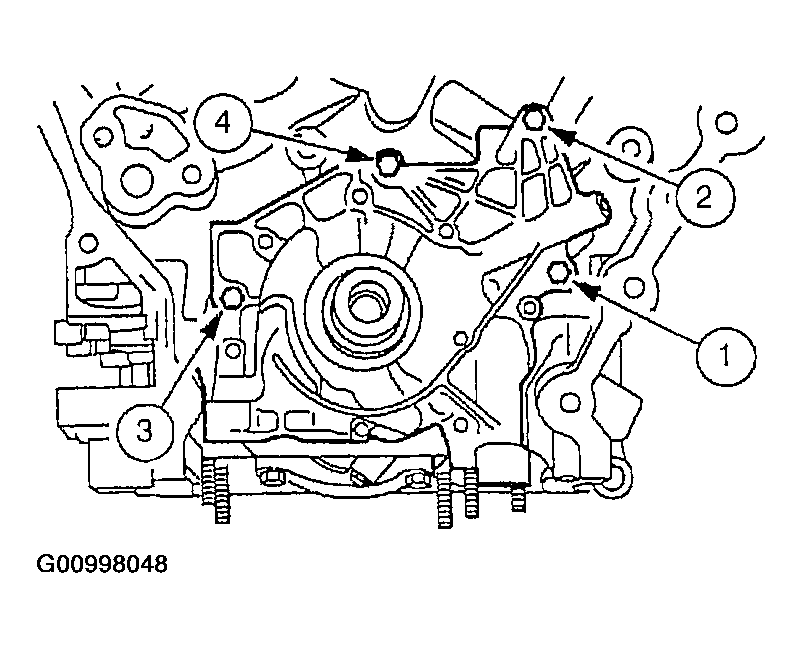

    Fig 1: Oil Pump Bolts Loosening Sequence
    G00998048Courtesy of MAZDA MOTORS CORP.
