Driver's Seat (Power Seat): Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

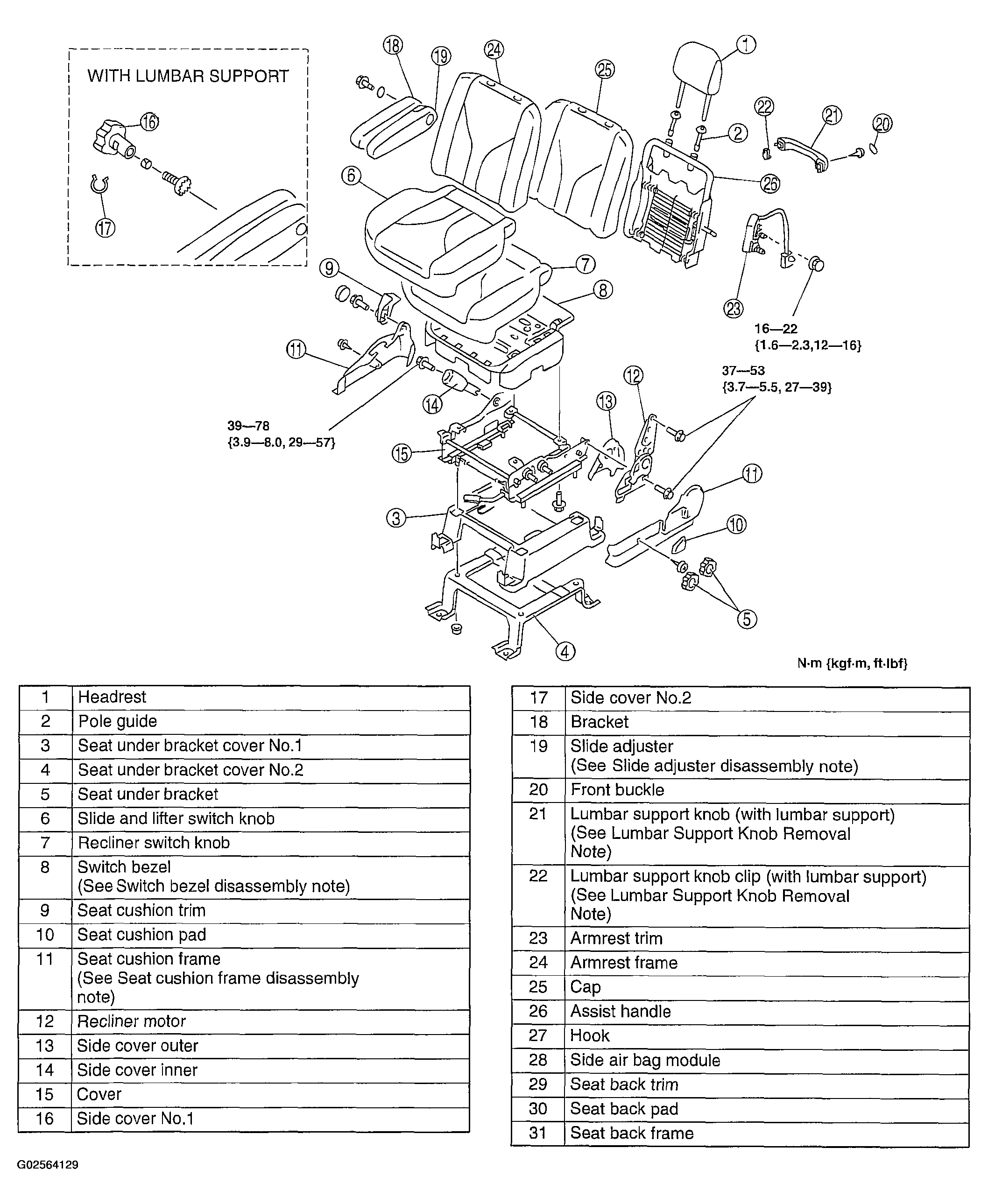

Fig 1: Disassembling/Assembling Front Seat - Driver's Seat (Power Seat)
G02564129Courtesy of MAZDA MOTORS CORP.
