Disconnecting Connectors

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

When disconnecting connector, grasp the connectors, not the wires.

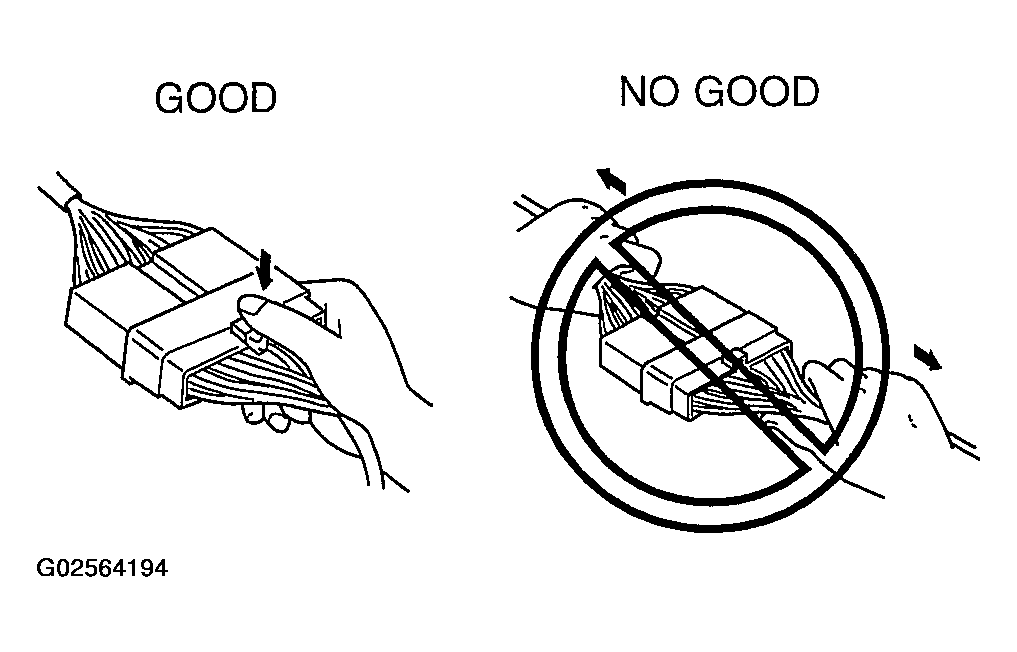

Fig 1: Grasping Connectors While Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.

Fig 2: Identifying Connector Lock Levers
Courtesy of MAZDA MOTORS CORP.
