Resistance Inspection (On-Vehicle)

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the terminal component No. 1 connector.

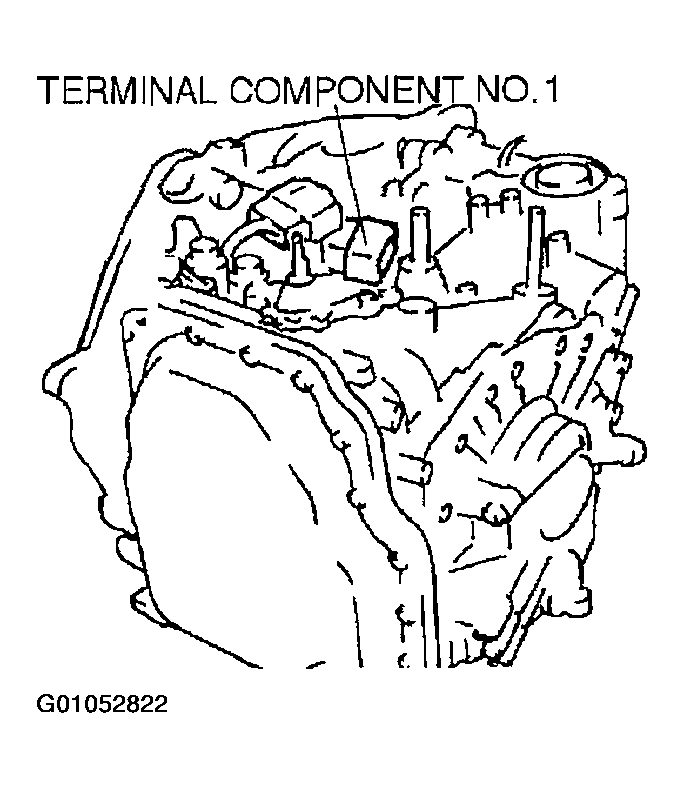

Fig 1: Locating Terminal Component No. 1 Connector
Courtesy of MAZDA MOTORS CORP.
Measure the resistance between the following terminals.
- If not as specified, inspect each solenoid valve. (See RESISTANCE INSPECTION (OFF-VEHICLE) .)
  ATF Temperature: 20°C {68°F}

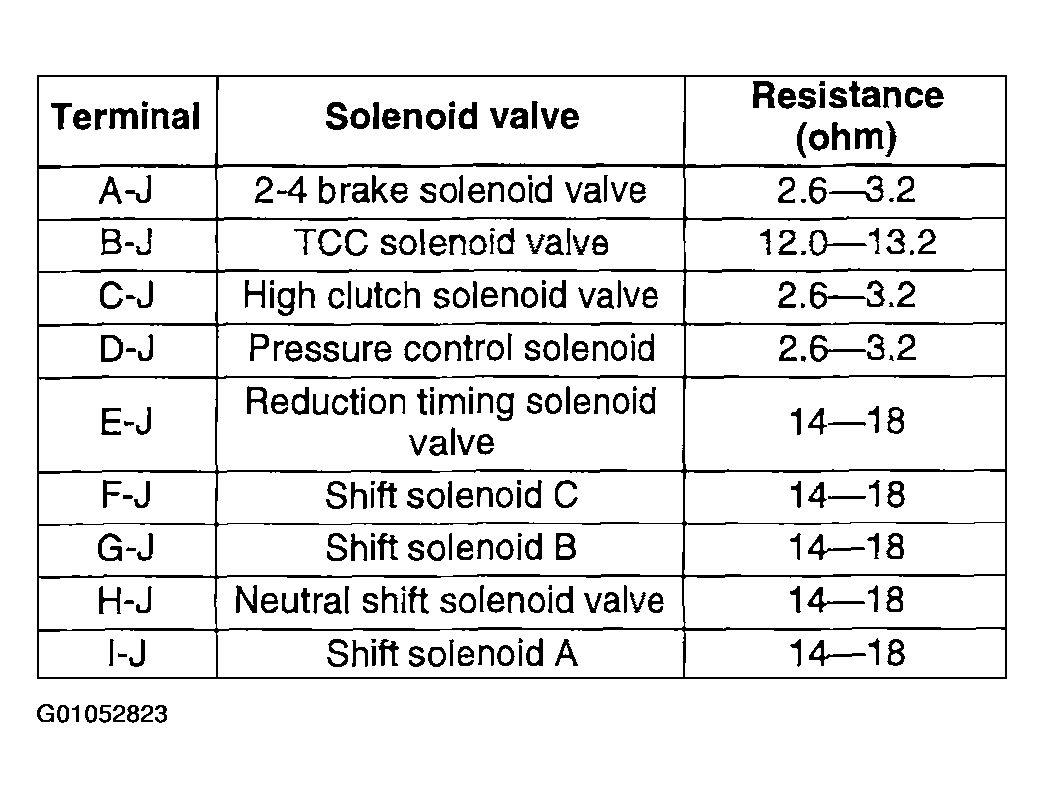

  Fig 2: Solenoid Valve Resistance Specifications
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Identifying Terminal Component No. 1 Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
Connect the terminal component No. 1 connector.
Connect the negative battery cable.
