Operating Inspection (On-Vehicle)

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the terminal component No. 1 connector.
    2. CAUTION:
    • Do not apply battery positive voltage to terminals for more than three seconds.

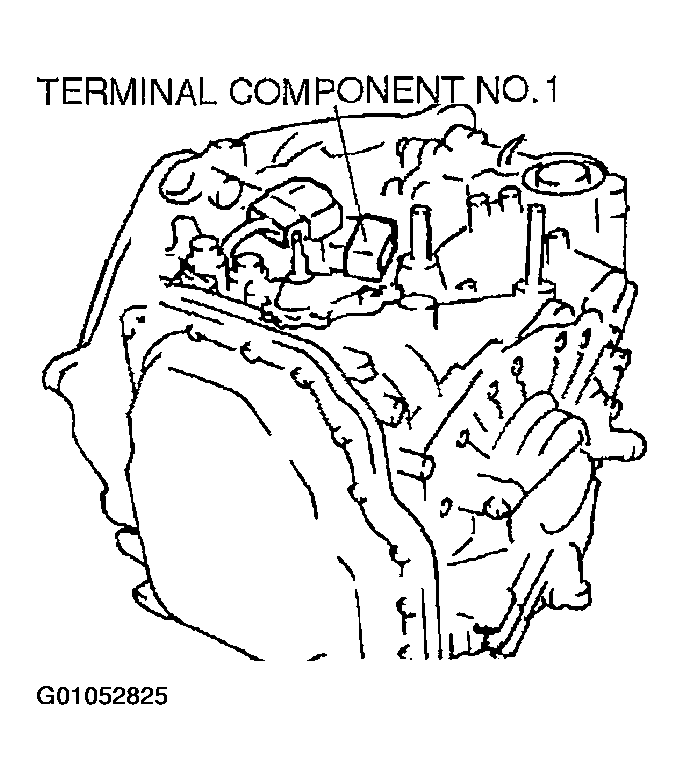

      Fig 1: Locating Terminal Component No. 1 Connector
      G01052825Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Because the operation sound of the valves is small, inspect in a quiet place.
  2. Apply battery positive voltage to terminals A, B, C, D, E, F, G, H, I and battery negative voltage to GND, and verify that operating sound is heard from solenoid.
    • If the "click" is not heard, inspect the transaxle harness.
      • If the transaxle harness is okay, perform the resistance inspection (off-vehicle inspection).
      • If there is a problem, repair or replace the transaxle harness.
  3. Connect the terminal component No. 1, connector.
