Forward Flushing

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect power flushing equipment so the flushing fluid flows in the direction of normal fluid flow.
  2. Flush oil cooler/lines until discharge fluid is clean.

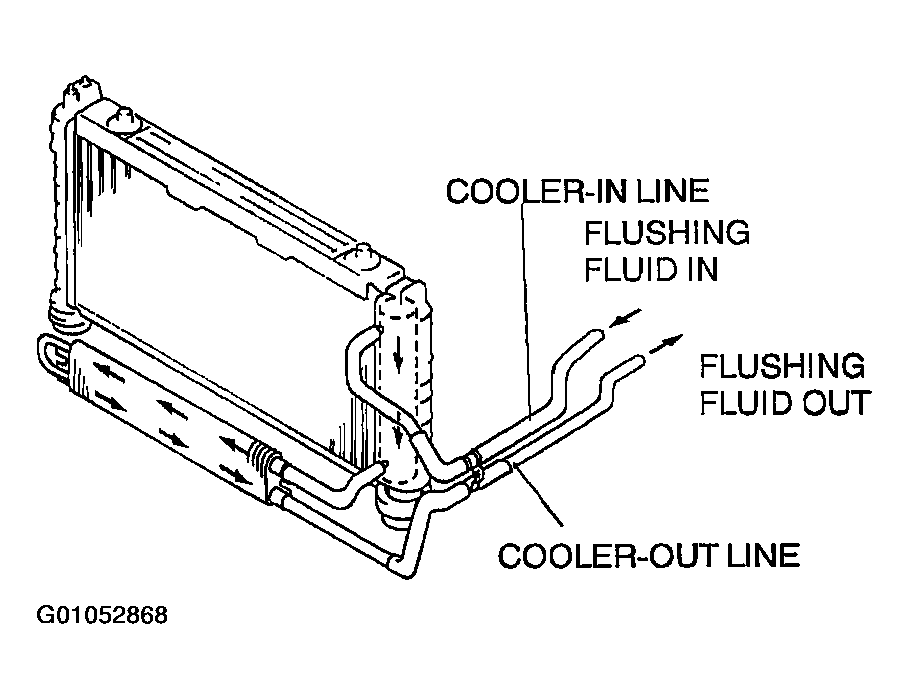

    Fig 1: Flushing Oil Cooler/Lines - Forward Flushing
    G01052868Courtesy of MAZDA MOTORS CORP.
