Drive Plate Mounting Bolts Installation Note
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

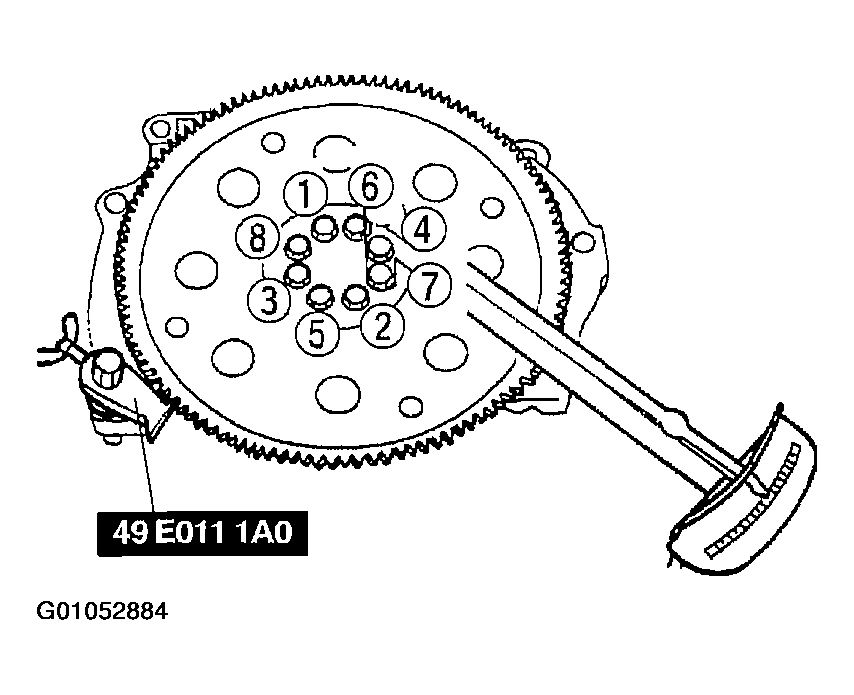

- Set the SST
or equivalent against the drive plate.
- Tighten the drive plate mounting bolts in two or three steps in the order shown.
Courtesy of MAZDA MOTORS CORP.
Tightening Torque
73-87 N.m {7.4-8.9 kgf.m, 54-64 ft.lbf}
