No. 4 Engine Mount Bracket Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper link.
  2. Remove the windshield wiper motor.
  3. Support the engine using the SSTs  .
  4. Remove the No. 4 engine mount bracket.

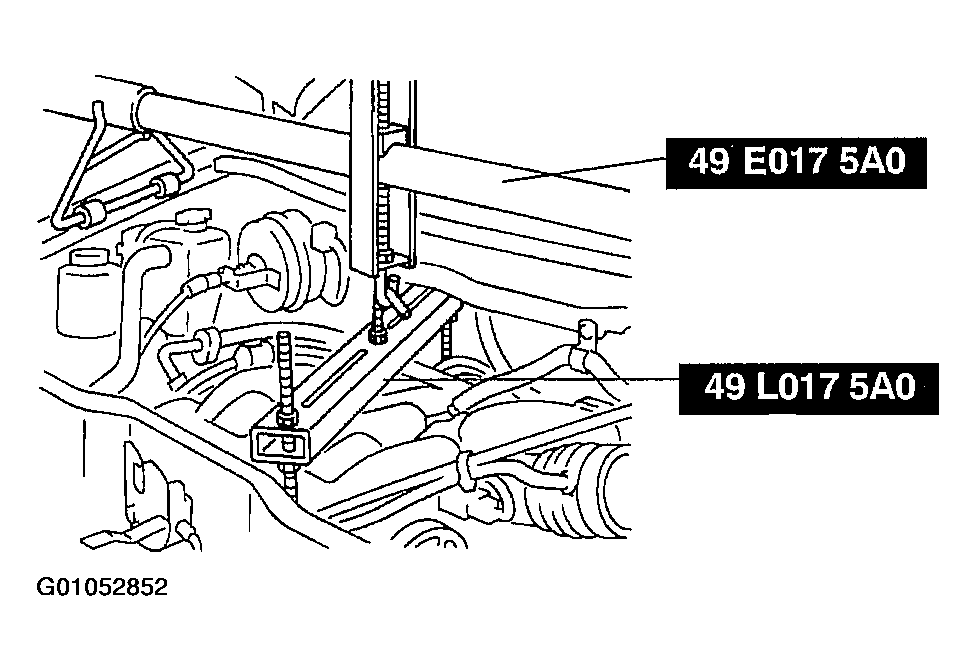

    Fig 1: Supporting Engine Using Special Tool
    G01052852Courtesy of MAZDA MOTORS CORP.
