Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

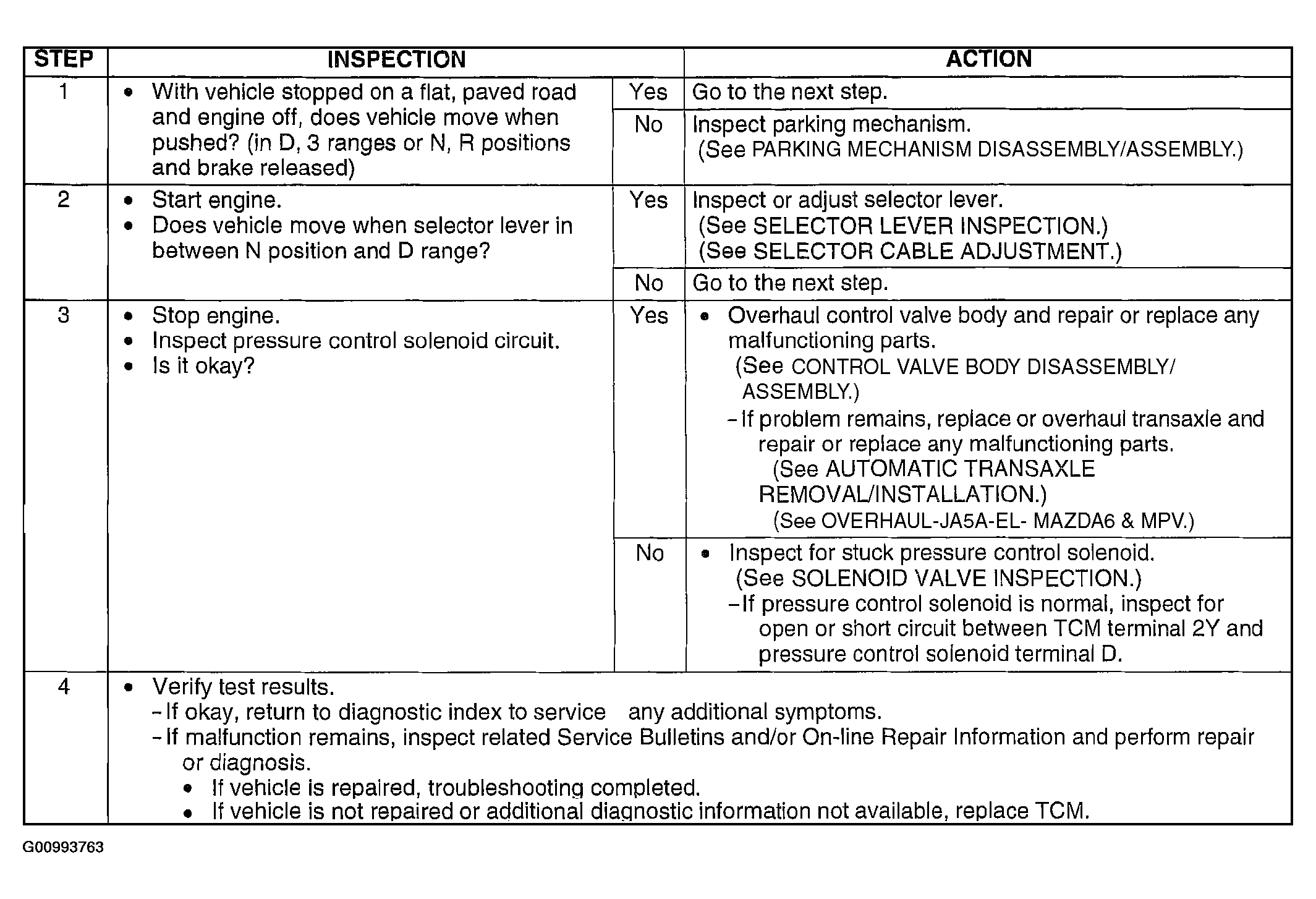

Fig 1: No. 1: Vehicle Does Not Move In D, 3, 2 Ranges, Or In R Position - Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
