Diagnostic Index

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Use, the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

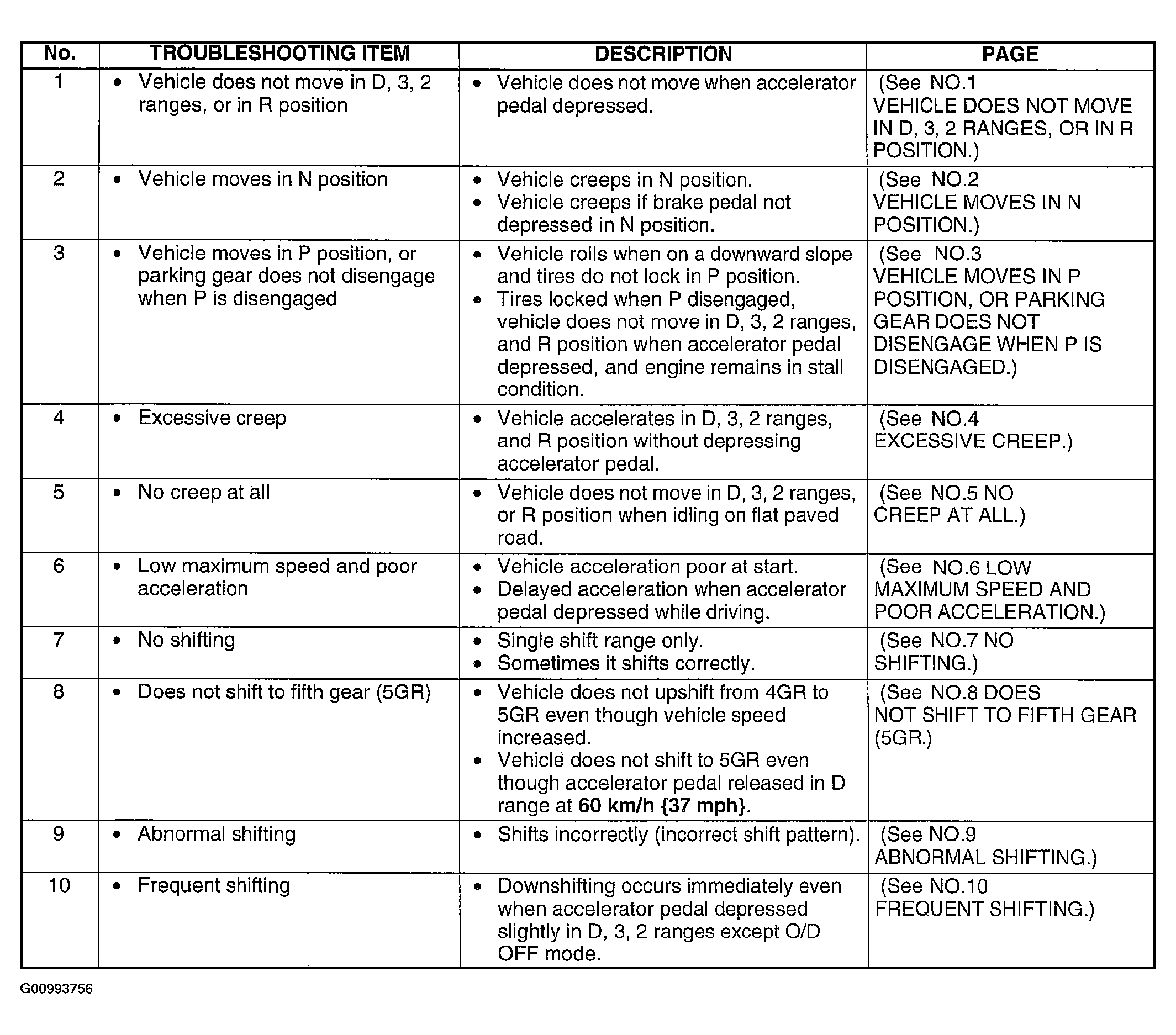

Fig 1: Automatic Transaxle Symptom Troubleshooting (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

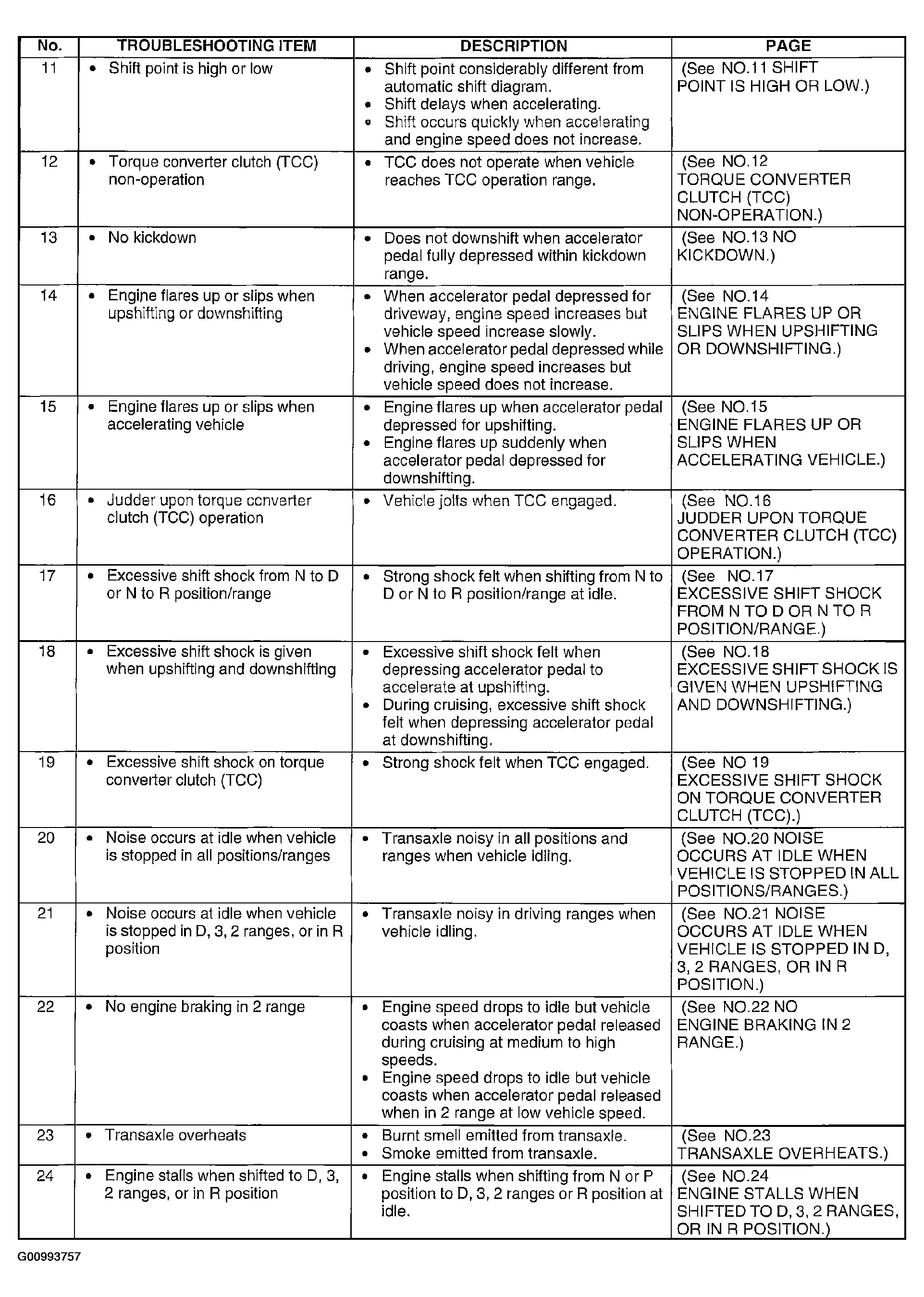

Fig 2: Automatic Transaxle Symptom Troubleshooting (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

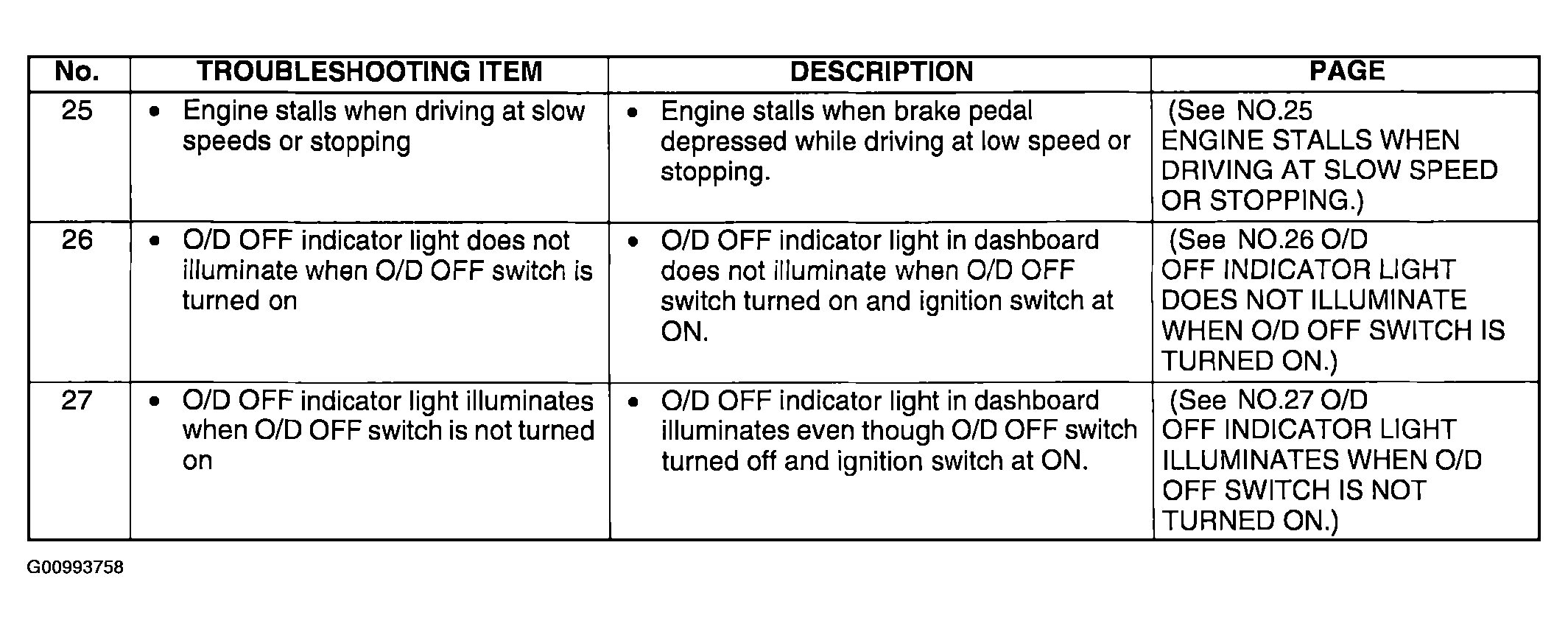

Fig 3: Automatic Transaxle Symptom Troubleshooting (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
