Protege, Tribute & 626
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

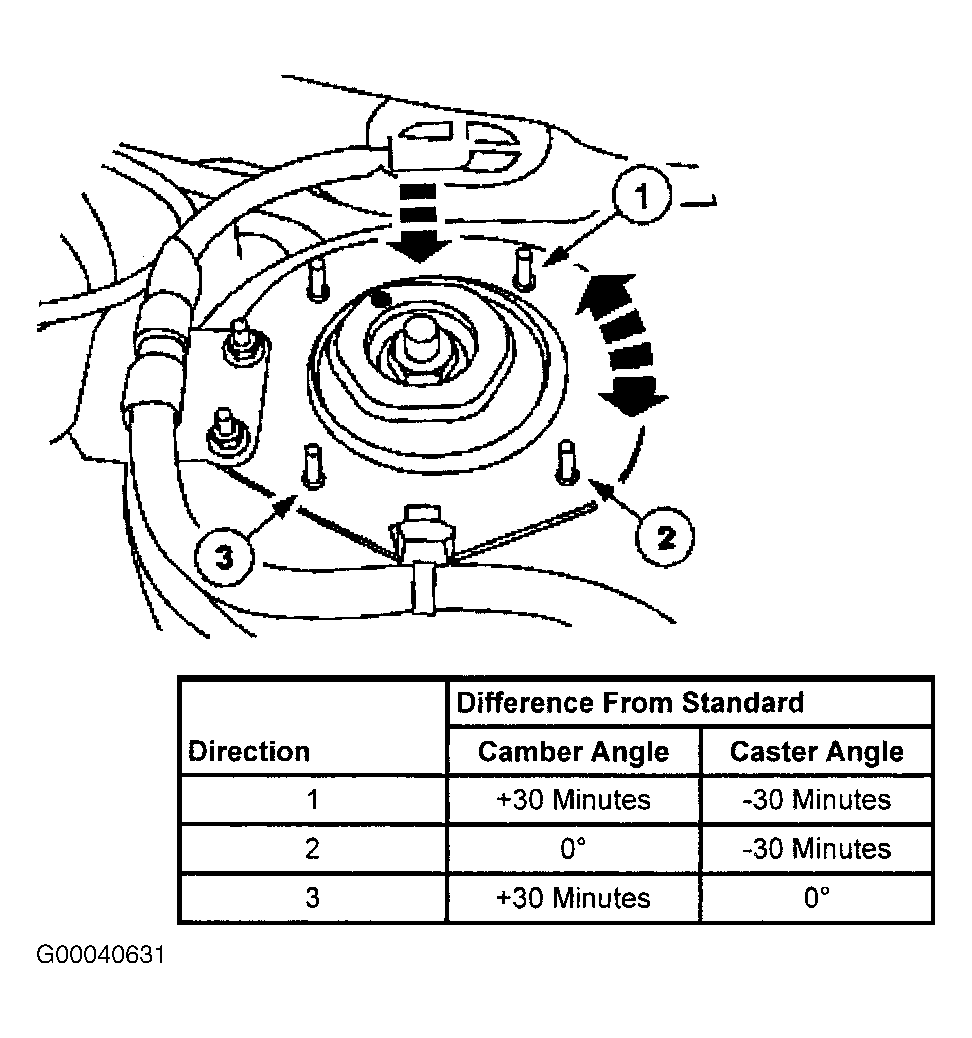

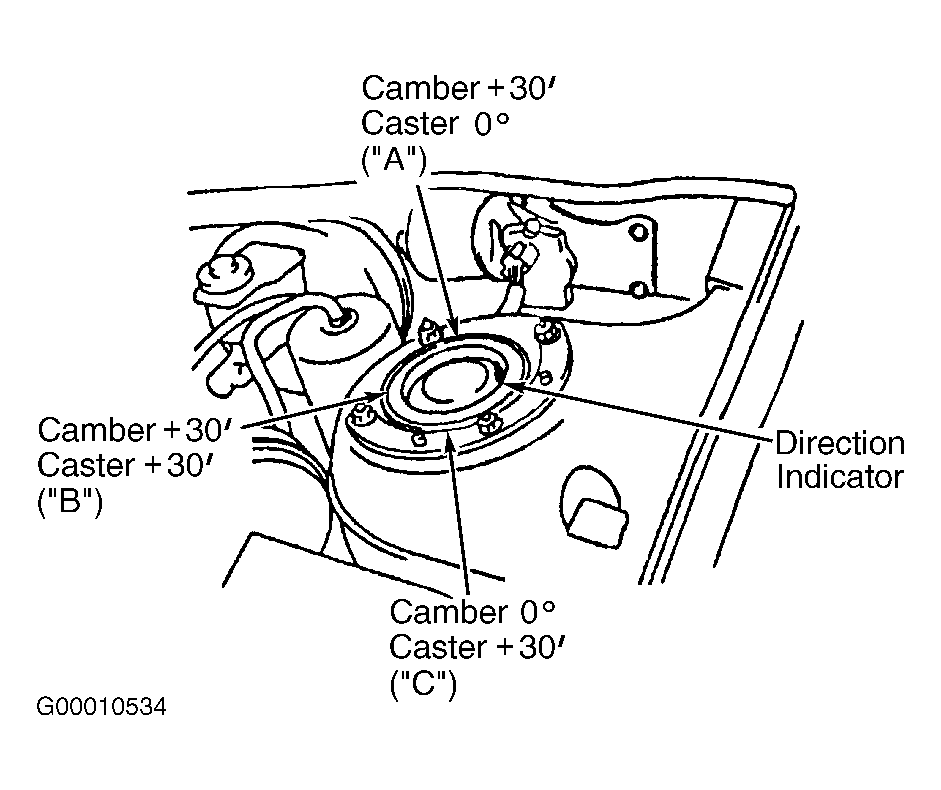

Raise and support front of vehicle. Remove upper strut-to-body nuts. Push strut mounting block downward, then turn to desired position. For Protege and 626, see Fig 1 . For Tribute, see Fig 2 . Reinstall and tighten nuts to specification. See TORQUE SPECIFICATIONS . Ensure alignment is correct. See WHEEL ALIGNMENT SPECIFICATIONS table.
