B2300, B2500, B3000, B4000 & Tribute

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

To avoid lower body damage, place a block of wood between lift point and each lift pad. Ensure lift pads DO NOT interfere with any component near lift point. Lift points are on frame rails behind front tires and in front of rear tires. See Fig 2 Or Fig 3 .

Fig 1: Identifying Hoisting Points (Except B2300, B2500, B3000, B4000 & Tribute)

Courtesy of MAZDA MOTORS CORP.

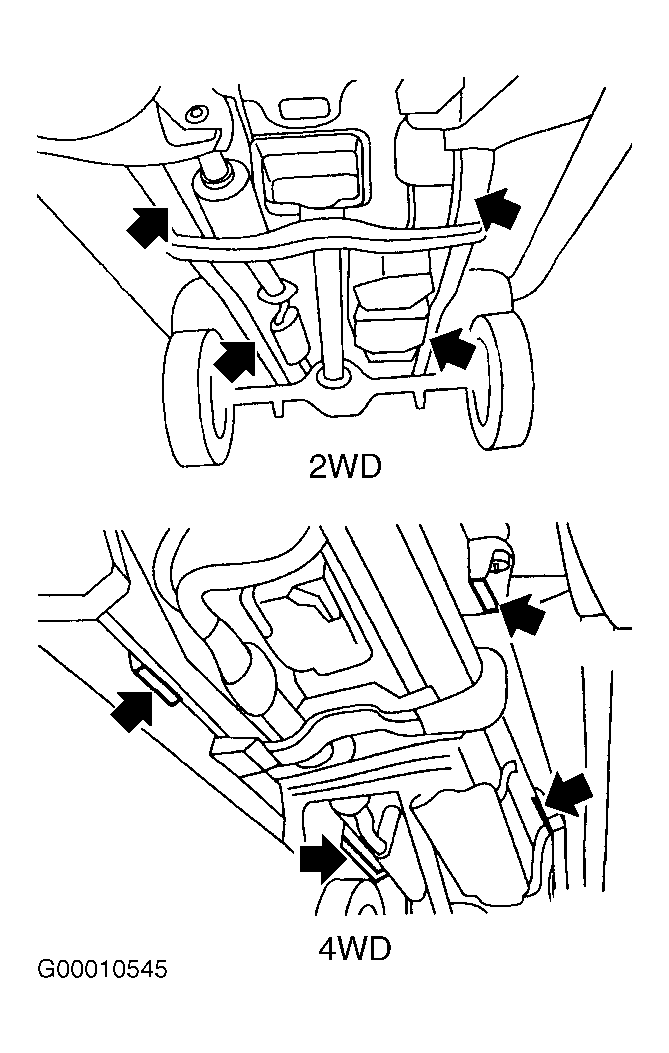

Fig 2: Identifying Hoisting Points (B2300, B2500, B3000 & B4000)

Courtesy of MAZDA MOTORS CORP.

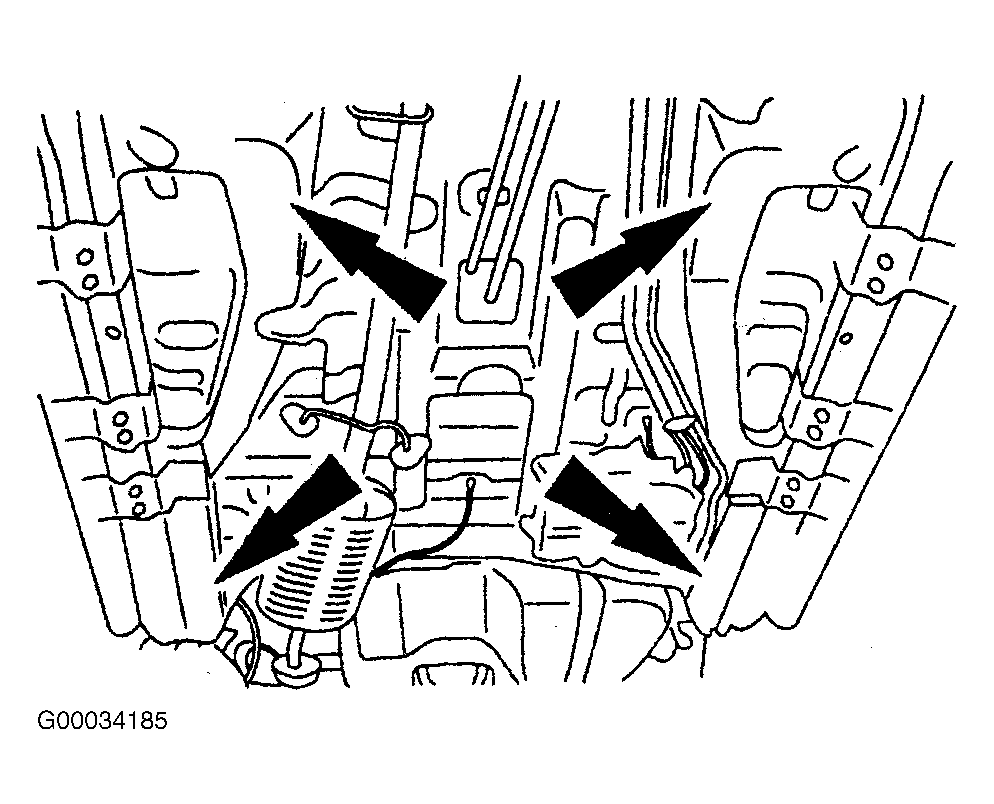

Fig 3: Identifying Hoisting Points (Tribute)

Courtesy of MAZDA MOTORS CORP.
