Downstream HO2S Graph Line Example 3

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Equation

RATIO = 26 inversions (upstream HO2S inversions) divide 19 inversions (downstream HO2S inversions) = 1.4 (deteriorated WU-TWC)

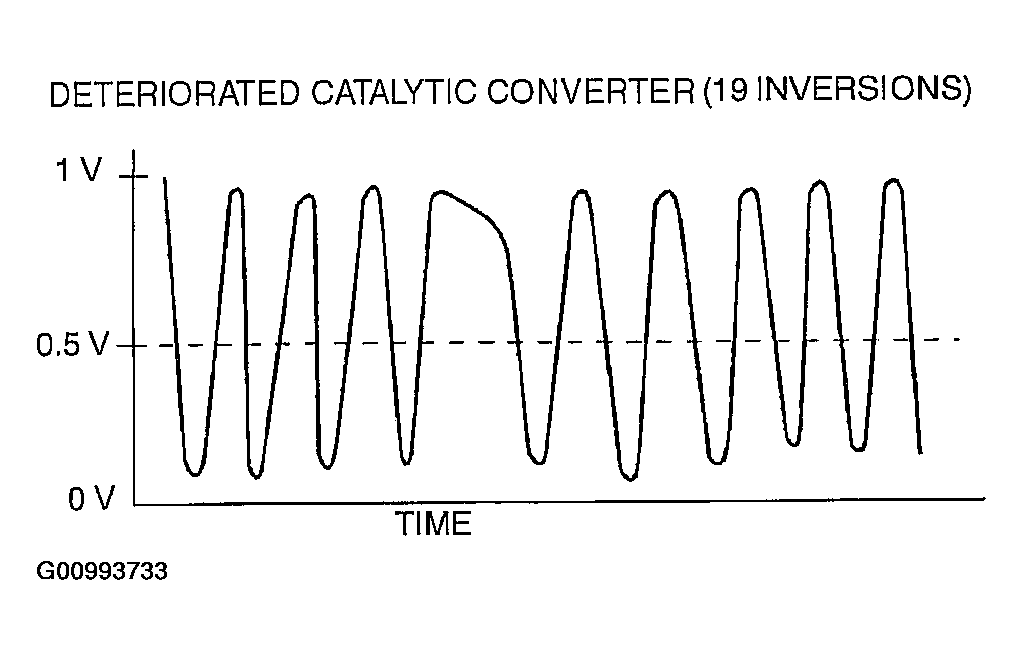

Fig 1: Downstream HO2S Graph Line Example 3
G00993733Courtesy of MAZDA MOTORS CORP.
