Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

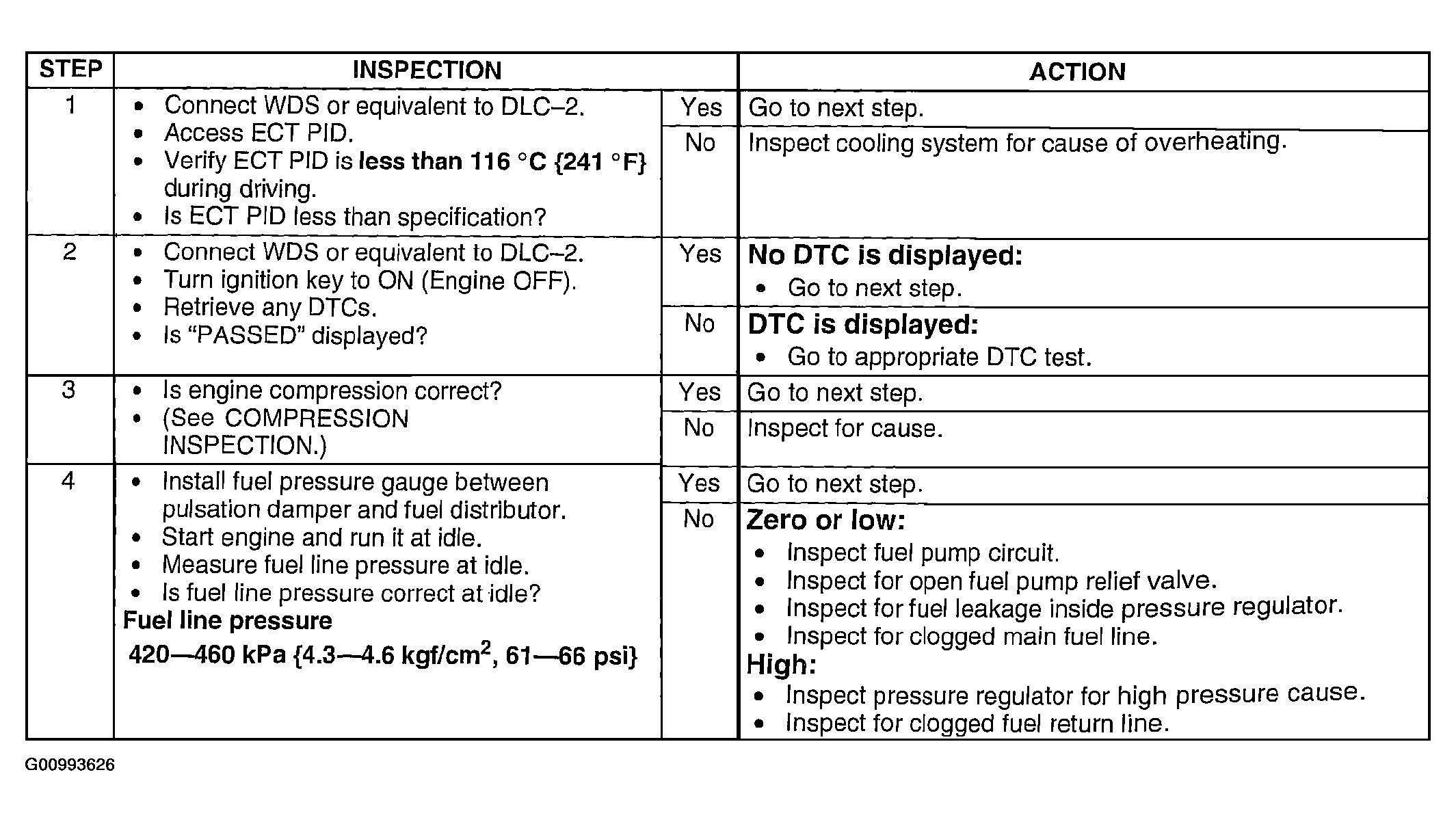

Fig 1: Symptom No.13 Diagnostic Procedure Chart (Step 1-4)
G00993626Courtesy of MAZDA MOTORS CORP.

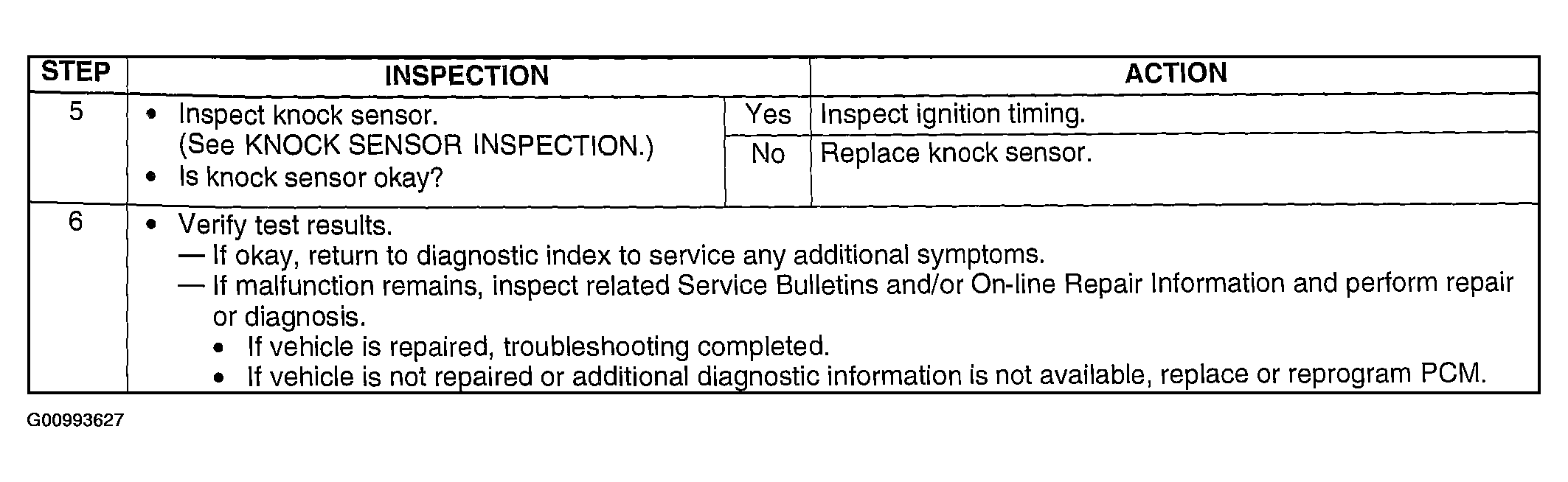

Fig 2: Symptom No.13 Diagnostic Procedure Chart (Step 5-6)
G00993627Courtesy of MAZDA MOTORS CORP.
